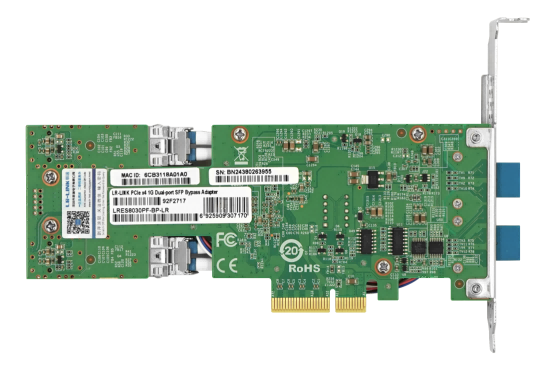

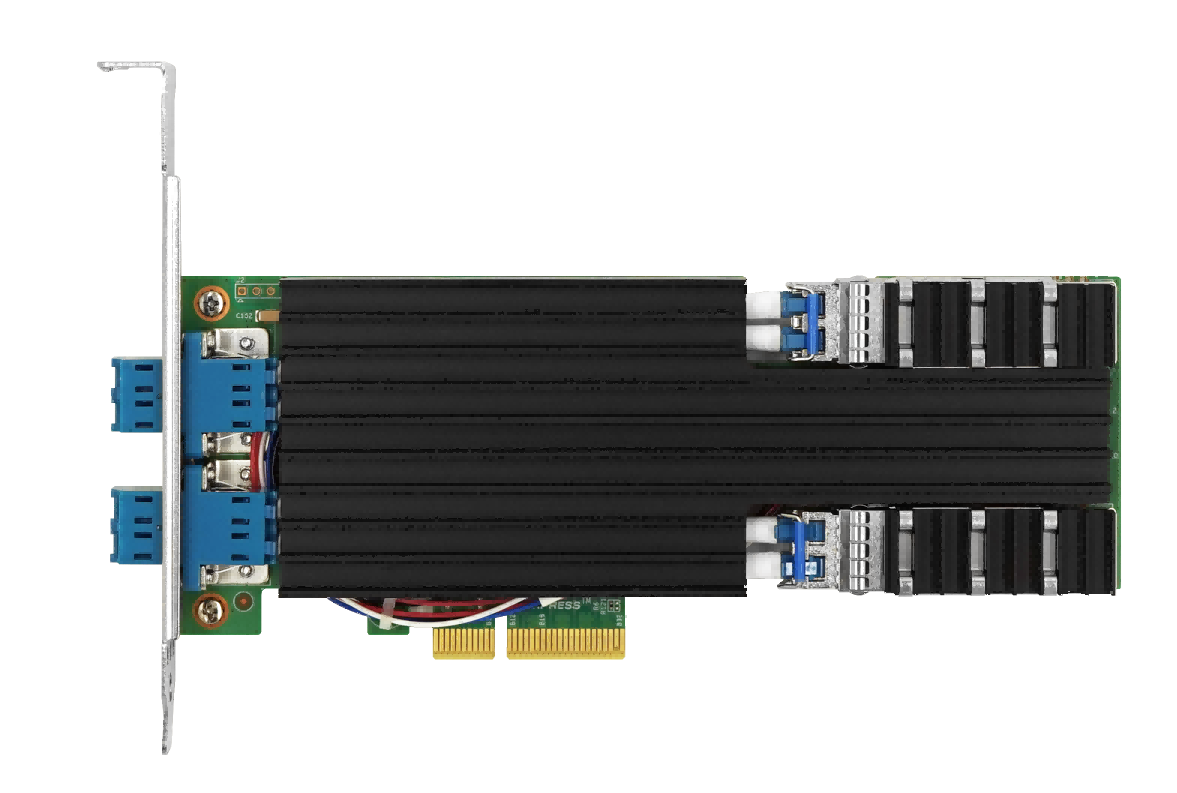

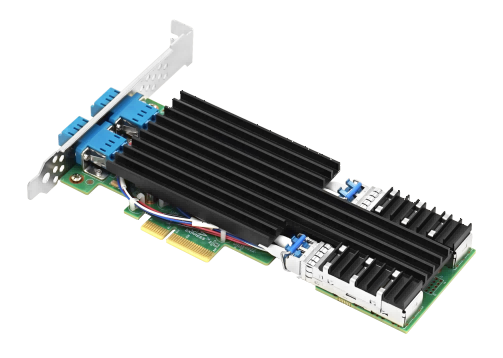

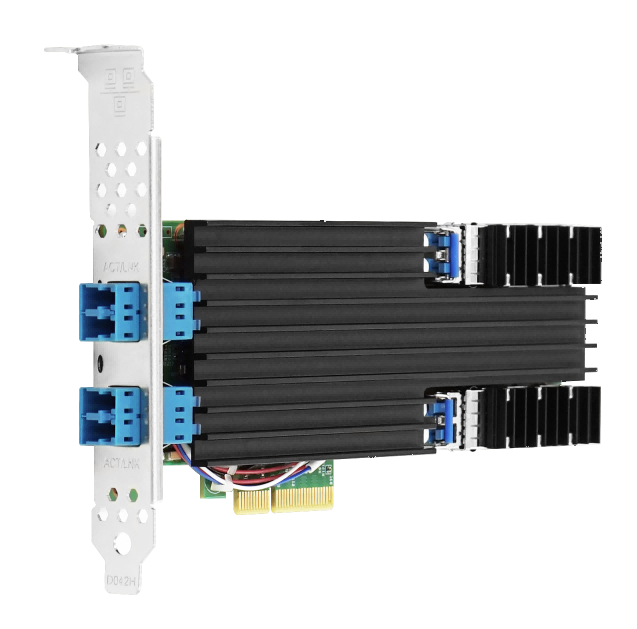

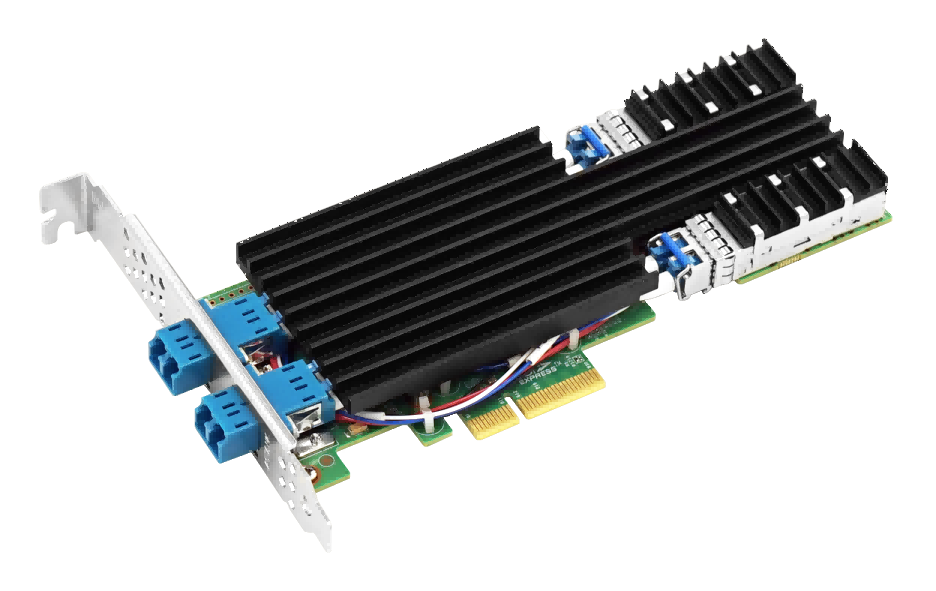

LRES8030PF-BP
PCIe x4 | Dual-port Bypass Adapter | Support 1000Mbps
LRES8030PF-BP
PCIe x4 1G Dual-port Bypass Adapter
PCI Express 2.0 x4
2 * SFP
Support 1000Mbps
normal, bypass and watchdog modes
Support SR-IOV
Support 1588 PTP
The adapter supports three operating modes: Normal, Bypass, and Watchdog. In Normal mode, both ports operate independently. In Bypass mode, the network ports are physically linked, automatically forwarding packets between ports when the system is powered off or fails, maintaining continuous network traffic . Watchdog mode actively monitors system health, ensuring automatic failover in the event of hardware, software, or configuration failures, preventing communication disruptions .
LRES8030PF-BP is widely used in network security appliances, server clusters, and data center networks . It enhances network reliability and availability, ensures safe maintenance and upgrades, and guarantees stable inter-network communication even during unexpected system faults .
Independently Fiber Gigabit Ethernet channel/s support Gigabit Ethernet 1000Base-SX(850nm MMF) Small Form Factor (SFF) LC Connectors
-LR ：Fiber Gigabit Ethernet 1000Base-LX
Independently Fiber Gigabit Ethernet channel/s support Gigabit Ethernet 1000Base-LX(1310nm SMF) Small Form Factor (SFF) LC Connectors
Model | LRES8030PF-BP |
Controller | Intel I350 |
Adapter Type | Bypass Adapter |
Form Factor | Half Height Half Length |
Host Connector | PCIe2.0 x4 |
Connectors | SFP |
Port | Dual |
Link Speed | 1000Mbps |
Power consumption(W) | Max: 3.78 Min:3.70 |
Protocol Support | IEEE802.3az - Energy Efficient Ethernet (EEE) IEEE 1588, 802.1as IEEE 802.3/ 1000BASE-T |
PXE/ UEFI | No |
SR-IOV | Yes |
1588 PTP | Yes |
Jumbo Frames | 9.2KB |
LED Type | Color/Behavior | Note |
Link/Activity | Off Amber Amber(blink) | No Link Link Link up(traffic flowing) |
Bypass | Off Green | No Bypass Bypass mode |
Supported Operating System
Windows Windows Server Deepin VMwareESXi RHEL/CentOS Ubuntu Fusion OS Kylin OS NewStart OS UOS Fangde OS OpenEuler Rocky OS Debian OS iKuai Routing OS |
Operating Temperature | -10°C to 65°C |
Storage Temperature | -40°C to 70°C |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 °C |
Certification | FCC,CE, RoHS |
Physical Properties
PCB Size(Unit:mm) |
167.38*68.18 |
Package Size (Unit: mm) | 222* 147*28 |
Packing List
Internet Network Adapter |
*1 |
Product Warranty Card | *1 |
Packaging | Carton + Blister Box |
