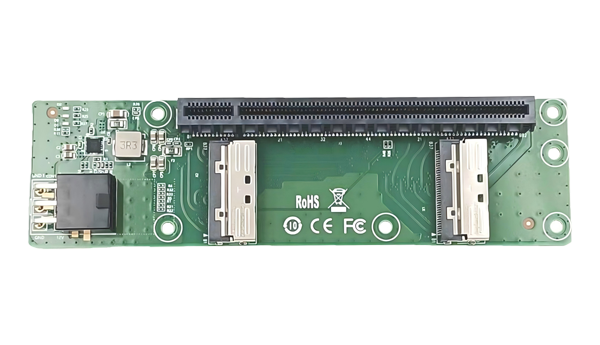

LRFNA921A

MCIO PCIe Gen5 Device Adapter 2* 8i to x16

-2*56GPCle 5.0 MCI0 8i input, 1*PCle x16 output

-PCle gen5 Amphenol SMT socket

-85 ohm ultra low loss PCB

-Can operate in x8 mode with one cable (input near the power plug)

-Can operate in x16 mode using two input connections(Must be the same CPU host port, and the channel order must be 0-7->8-15, not 8-15->0-7. Helps when switching cables!)

LRFNA921A

PDF 0B

Download

More Support

Product Overview

LRFNA921A is a MiniCooledgeIO (MCIO8I) to PCIex16 slot adapter card. It can be expanded to the PCIex16 slot by inserting a PCIeAIC card with two MCIO interfaces (e.g., switch, retimer, etc.), thereby providing greater bandwidth and faster transmission speed. It can also connect only the first MCIO interface to achieve the use of PCIex8 devices and achieve the purpose of connecting more PCIe devices. LRFNA921A can easily connect graphics cards, accelerator cards, and other add-on card devices to improve efficiency.

Model Specifications	LRFNA921A
Power Connectors	ATX 2*3 GPU Mini fit 5569
Device Connectors	1 PCIe AICHost Bus
Host Bus	2 MCIO 74Pin
Device Connectors	2 * MCIO(74 Pin, x8 PCIe Gen5)
Optional cables	MCIO 8i to MCIO 8i Cable L=0.8m
	MCIO 8i to SFF-8654 8i Cable L=1m
humidity	5% - 90%
Operating temperature	0°C to 70°C
Storage temperature	-40°C to 70°C
operating voltage	+12V +/-8%
Size	138.5mm * 38mm
weight	250g
