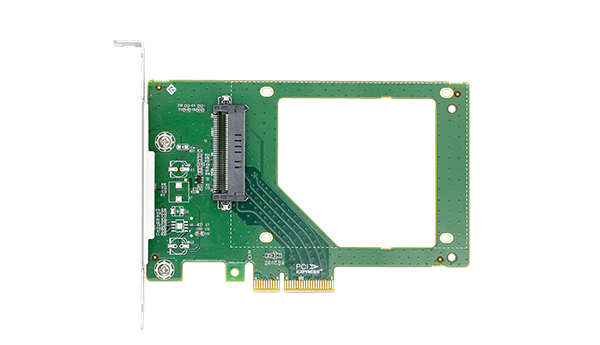

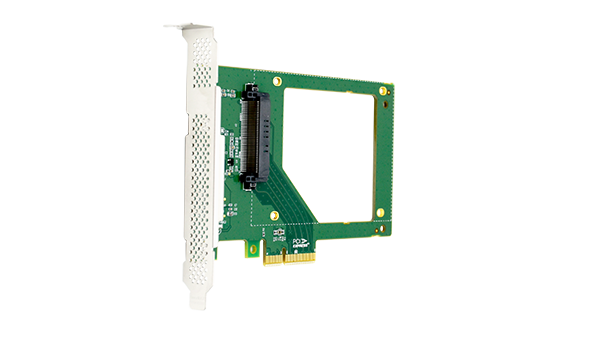

LRNV9411U3 PCIe x4 to U.3 NVMe SSD Adapter

Product Model： LRNV9411U3

Product Name： PCIe 4.0 x4 to U.3 NVMe SSD Adapter

Interface： U.3（SFF-8639)

Support：1* U.3 NVMe SSD

Host Bus Type： PCIe 4.0 x4

The LRNV9411U3 allows you to install an Extremely High Performance Enterprise-Class 2.5" U.3 SSD on LRNV9411U3 PCIe Card for Enthusiast Gaming and Workstation Markets.

Features:

Mount a 2.5-inch U.3 SSD onto a PCI Express Add-in card and install on a PCIe x4 slot. No cables are required.

The adapter is a PCI Express 4.0 4-lane Host adapter. Supports PCIe 4.0 and PCIe 3.0 motherboard

The SFF-8639 interface socket is for U.3 SSD.

No driver installation is required.

System Requirement:

- An empty PCIe 4.0 or PCIe 3.0 x4, x8, or x16 slot.

Note: The SFF-8639 interface socket on this card is for U.3 SSD. It does not support U.2 SSD.

HARDWARE
Model	LRNV9411U3
Interface	PCI Express 4.0 x4
Compatible Drive	U.3 (PCIe NVMe SSD, SFF-8639)
CONNECTOR(S)
Drive Connector	68-pin Female SFF-8639 Connector
ENVIRONMENTAL
Humidity	15% ~ 90%
Operating Temperature	5°C to 50°C (41°F to 122°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
PHYSICAL CHARACTERISTICS
Product Dimension	137mm X90mm
Product Weight	57g
Shipping Weight	4.4oz [125 g]
WARRANTY INFORMATION
Warranty	3 Years
WHAT'S IN THE BOX
Included in Package	1 - PCIe to U.2 Adapter For 2.5" U.3 NVMe SSD
	1 - Full-Height Bracket(Installed)
	4 – Screw & Nut for SSD

PCIe 4.0 x4 | SFF-8639 | Single-port

LRNV9411U3 PCIe x4 to U.3 NVMe SSD Adapter
