LRES1023PF-4SFP28
PCIe 4.0 x16 | Intel E810 | 25G | SFP28 | Quad-port

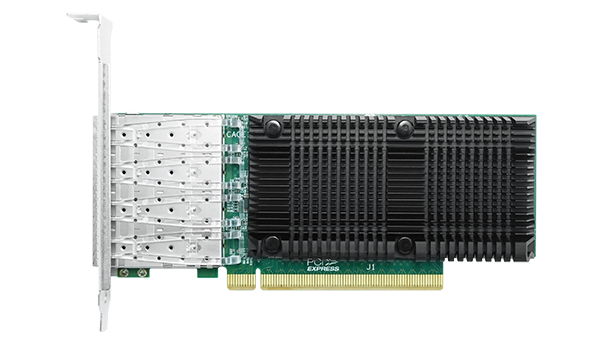

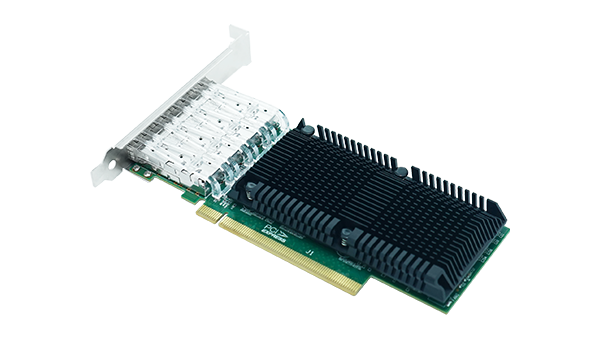

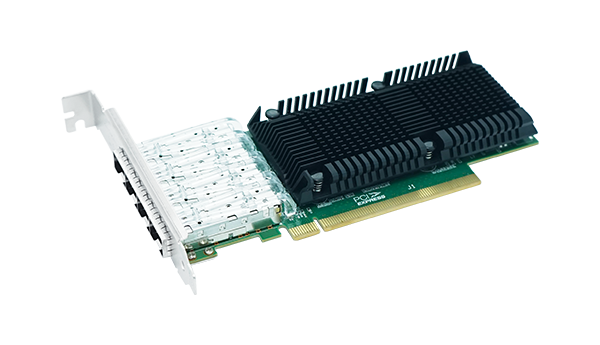

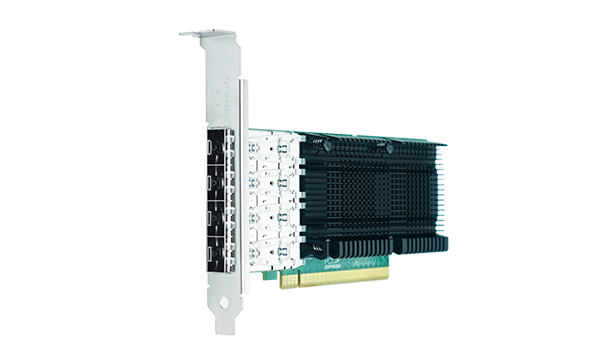

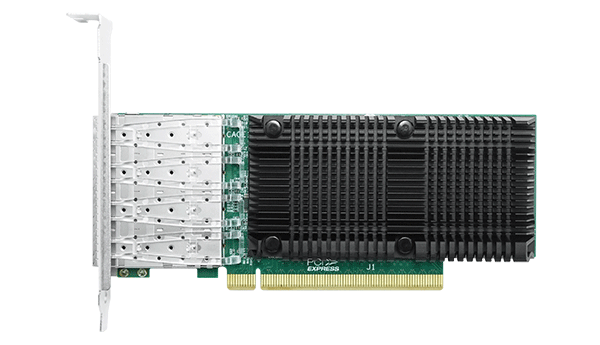

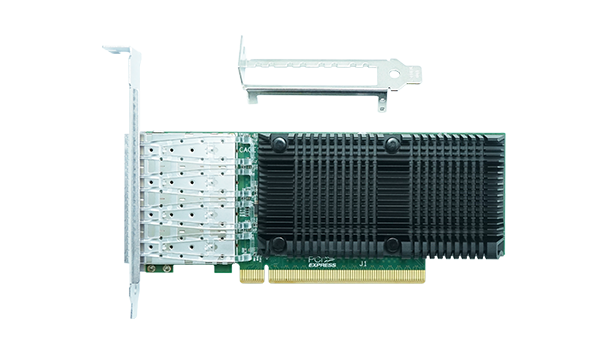

LRES1023PF-4SFP28
PCIe x16 Quad-port 25G SFP28 Ethernet Network Adapter (Intel E810)
A fiber 25G ethernet network adapter based on Intel chips.
Four 1/10/25GbE SFP28 ports deliver multiple high speed connections.
Dynamic Device Personalization (DDP)
Supports both RDMA iWARP and RoCEv2
Application Device Queues (ADQ)
IEEE 1588 Precision Time Protocol (PTP)
LRES1023PF-4SFP28 is a PCIe X16 quad-port 25G Ethernet network adapter developed by Linkreal Co., Ltd based on Intel master control solution. Using Intel 800 series master control, through innovative multi-functional functions to improve application efficiency and network performance. With its high-density high transmission rate ports, the cloud and communications are optimized for high-performance system workloads.
LRES1023PF-4SFP28 helps optimize performance in cloud and storage, high-density 25G port provides multiple on-demand connections, The Intel 800 series master application Device Queue (ADQ) provides dedicated traffic queues to reduce latency and improve application throughput while also supporting dynamic device personalization protocol specific traffic acceleration to improve packet processing efficiency and reduce CPU overhead. The addition of iWARP and RoCE V2's RDMA technology provides high-speed, low-latency, high-throughput connectivity to cloud storage targets.
LRES1023PF-4SFP28 contains IEEE 1588 PTP V2 precise time protocol support for precise clock synchronization.
Controller | Intel E810 |
Cable medium | Fiber Optic |
Cable Type | 25GBASE-SR、25GBASE-LR、25GBASE-Cu |
10GBASE-SR、10GBASE-LR、10GBASE-Cu | |
1GBASE-SR、1GBASE-LR、1GBASE-Cu | |
Bracket Height | Low Profile & Full Height |
Power (min) | 9.588 W |
Power (max) | 16.44W |
System Support | Windows 10 /11 |
Windows Server 2016 /2019 /2022 | |
Deepin 20 /20.6 /20.9 | |
VMware ESXi 6.7 /7.0 | |
Galaxy Unicorn v10 | |
Galaxy Unicorn v10 SP1 | |
NeoKylin 7.6 | |
RHEL/CentOS 7.6 /7.9 /8.2 | |
Ubuntu 16.04.3 /18.04.5 | |
Ubuntu 20.04.1 /22.04.2 | |
SUSE 12.5 /15.4 | |
FreeBSD 12.2 /13.2 | |
ZTE New Fulcrum 5.0.5 /3.2.2 | |
Asianux Server v7.0 | |
Zhongke Fangde server operating system | |
iKuai router | |
Bus Interface | PCIe v4.0 (16.0GT/s) x16 |
Data rate per port | 1/10/25Gbps |
Connector | 4*25G SFP28 |
Power Supply | PCIe |
Technical Features
Protocol Support | IEEE 802.3by-2016 25GBASE-X Ethernet IEEE 802.3ae 10GBASE-X Ethernet IEEE 802.1Qav IEEE 802.1Qbu IEEE 802.1Qbv IEEE 802.3br IEEE 1588 PTP v1&v2 IEEE 802.3ad IEEE 802.3az - Energy Efficient Ethernet |
PXE | Yes |
DPDK | Yes |
WoL | No |
iSCSI | NO |
Jumbo Frames | Yes |
SR-IOV | Yes |
IPsec offloading | Yes |
UEFI | Yes |
1588 PTP | Yes |
Jumbo Frame(max) | 9.5KB |
ESD_Contact discharge | ±8KV |
Environment Features
Operating Temperature | 0℃ to 105℃ (32 ℉ to 221 ℉) |
Storage Temperature | -40℃ to 115 ℃ (-40 ℉ to 239 ℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Certification | FCC, CE, RoHS |
Physical Features
PCB Size(L x W x H) | 166.32 x 68.75 x 1.6 |
Package Size(L x W x H) | 222 x 147 x 28 |
Weight(g) | * |
LED Indicators
1G | LINK | Green Link |
ACT | Green Link + Green Blink | |
10G / 25G | LINK | Orange Link |
ACT | Orange Link + Green Blink |
Order Information
P/N | Description |
LRES1023PF-4SFP28 | PCIe x16 Quad-port 25G SFP28 Ethernet Network Adapter (Intel E810 Based) |
PS: Above details are only for reference, if there is any change,no prior notice.
Driver
| File name | For OS | Version | Upload time | Downlaod |
|---|---|---|---|---|
| ice-1.40.7.tar.gz | FreeBSD | 1.40.7 | 2024-08-14 |
 |
| ice-1.14.13.tar.gz | Linux | 1.14.13 | 2024-08-14 |
|
| Release_28.2.zip | OS Independent | v28.2 | 2024-07-19 |
|
