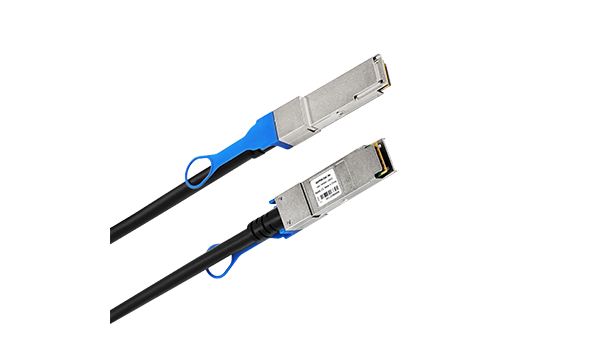

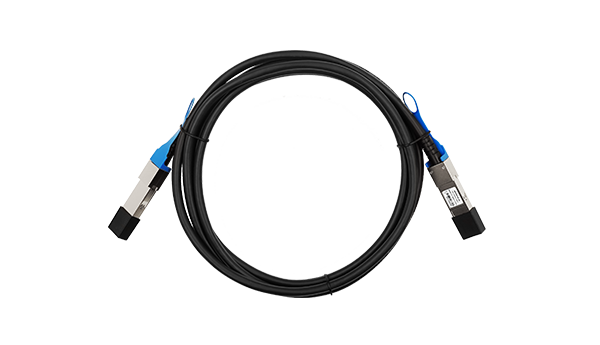

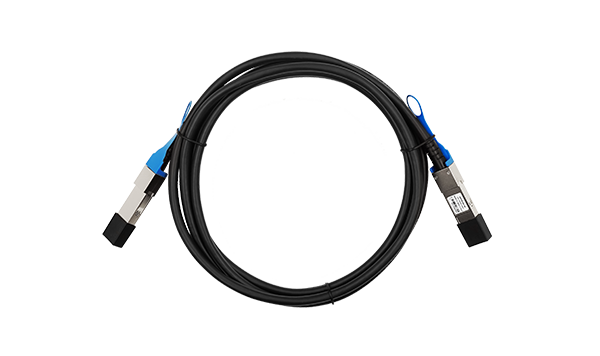

QSFP28 100G Direct Attach Cable

Single power supply +3.3V;

AC coupled inputs and outputs;

Up to 100 Gb/s bi-directional data links;

Fully Compliant with IEEE802.3bj;

Fully Compliant with Infiniband EDR specifications;

RoHS Compliant;

Compliant with QSFP28 MSA specifications;

All-metal housing for superior EMI performance;

Operating Case Temperature: 0℃~+70℃;

Storage Temperature: -40℃~+85℃;

LR-LINK QSFP28-DAC-3m passive direct attach cable uses shielded high-speed differential cables,it supports 100G transmission rate and can be backward compatible with various speeds.QSFP28-DAC-3m passive cables are the preferred solution for short-haul applications. They are commonly used for data transmission between data centers and cabinets or adjacent cabinets. The biggest features are low cost, ultra-low power consumption (less than 0.1 watts) and high reliability.

QSFP28-DAC-3m cable compliant with 100G Ethernet standard and QSFP28 Multi-Source Agreement (MSA) standard, It can increase port density and save costs, and is the preferred solution for 100G rate Ethernet applications, suitable for serial data

Absolute Maximum Ratings
Parameter	Symbol	Min.	Typical	Max.	Unit
Supply Voltage	V_CC	3.14	3.30	3.46	V
Storage Temperature	T_S_T	-40	-	85	℃
Operating temperature	T_OP_C	0	-	70	℃
Relative Humidity (non-condensing)	R_H	0	-	85	%
Bit Error Rate	BER	-	-	E-12	-
Recommended work environment
Parameter	Symbol	Min.	Typical	Max.	Unit
Operating Case Temperature	T_A	0	-	70	℃
Power Supply Voltage	V_CC	3.14	3.30	3.46	V
Data Rate per Lane	DR	-	40	-	Gbps

QSFP28 | 100G | 3m
