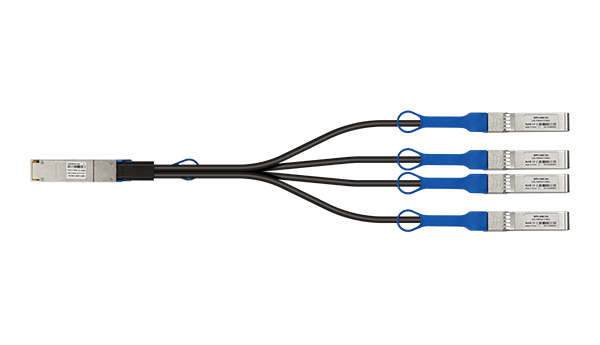

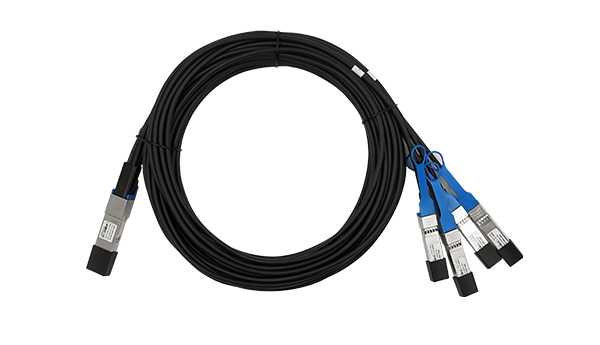

40G QSFP+ to 4x10G SFP+ Direct Attach Copper Cables

Single power supply +3.3V;

QSFP+ End: Compliant with QSFP+ MSA specifications;

SFP+ End: Compliant with SFP+ MSA specifications;

AC coupled inputs and outputs;

4 independent duplex channels operating at 10Gbps

RoHS Compliant;

All-metal housing for superior EMI performance;

Operating Case Temperature: 0℃~+70℃;

Storage Temperature: -40℃~+85℃;

LR-LINK QSFP+-4xSFP+-DAC-3m is the preferred solution for 40G speed short-range data transmission with low power consumption, good stability and high cost performance.The QSFP+ to 4SFP+ passive cable is used for data transfer between a 40G QSFP10 port and four 10G SFP+ ports, providing a low-cost solution for data transfer services within and between data center racks.This product complies with the SFF-8436, QSFP+ MSA and IEEE 802.3ae standards.

QSFP+-4xSFP+-DAC-3m is the preferred solution for short-distance data transmission at 40G rate. It complies with SFF-8436, QSFP MSA and IEEE 802.3ae standards, and is suitable for data transmission within and between racks in data centers.

Absolute Maximum Ratings
Parameter	Symbol	Min.	Typical	Max.	Unit
Supply Voltage	V_CC	-0.5	-	3.6	V
Storage Temperature	T_S_T	-10	-	75	℃
Operating temperature	T_OP_C	0	-	70	℃
Bit Error Rate	BER	-	-	E-12	-
Recommended work environment
Parameter	Symbol	Min.	Typical	Max.	Unit
Operating Case Temperature	T_A	0	-	70	℃
Power Supply Voltage	V_CC	3.14	3.3	3.46	V

QSFP+ to 4xSFP+ | 40G to 4x10G | 3m

40G QSFP+ to 4x10G SFP+ Direct Attach Copper Cables
