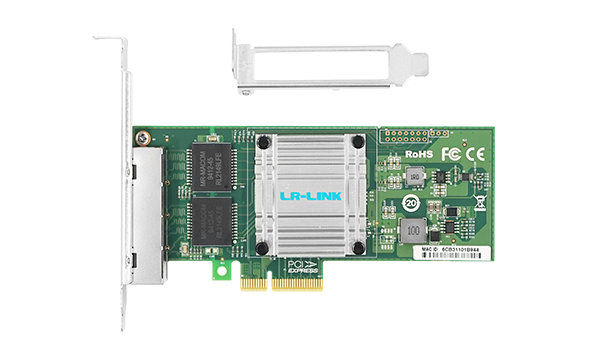

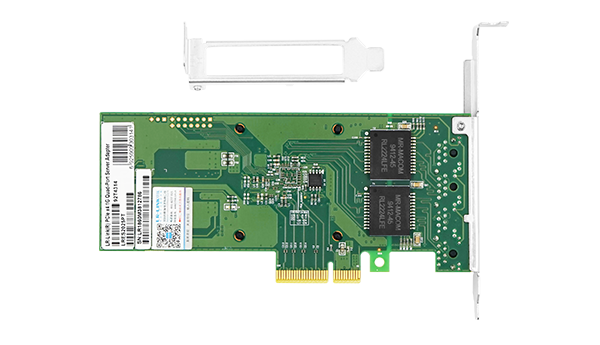

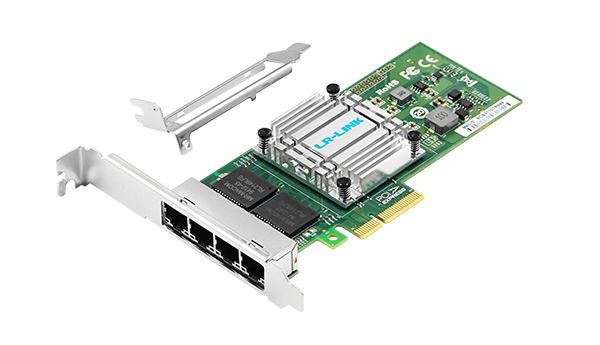

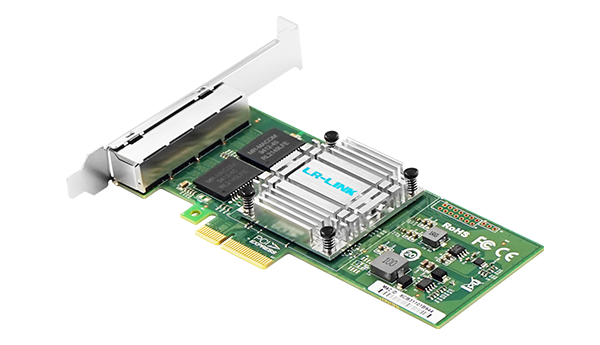

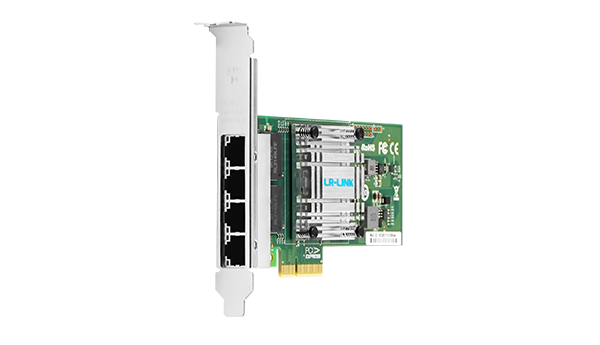

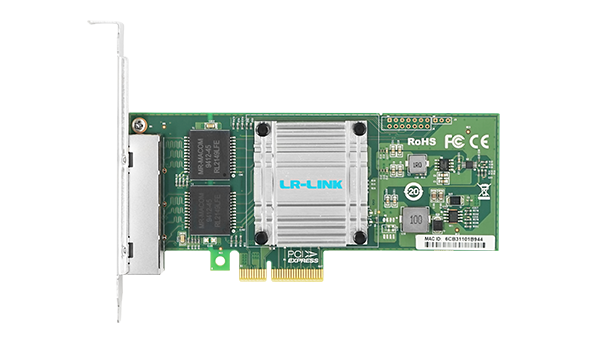

PCIe x4 Gigabit Quad-Port Ethernet Network Adapter(WX1860A4 Based)

Controller

WX1860A4

Cable medium

Copper

Fiber Type

1000Base-T，100Base-T

Bracket Height

Full profile/Low profile

Power (min)

0.78 W

Power (max)

1.452 W

Bus Interface

PCIe 2.0 x4

Data rate per port

100Mbps;1000Mbps

Connector

2*RJ45

Power Supply

PCIe

Protocol Support

IEEE 802.1Qbg(Virtual Ethernet Bridging)；

IEEE 802.1Qbb(Priority Flow Control)

IEEE 802.1Qaz(Enhanced Transmission Selection);

IEEE 802.1as(Time Sync);

IEEE 802.1Qau Congestion Notification;

IEEE 802.1q, 802.1p(VLAN)

IEEE802.3az (EEE)

PXE

Yes

UEFI

Yes

WOL

Yes

SR-IOV

Yes

1588 PTP

Yes

Jumbo Frame

9.4KB

ESD

±8KV (Class A)

Lightning surge test

±6KV common mode

Operating System Support

* Windows 7/8/8.1/10/ 11

* Windows Server 2012/2016

* Windows Server 2019/2022

* Deepin 20/20.6/20.9

* VMware ESXi 6.7

* Galaxy Unicorn V10

* NeoKylin 7.6

* OpenKylin 0.7.5

* RHEL/CentOS 7.6/7.9/8.2/8.3

* Ubuntu 16.04.3 /18.04.5/22.04.2

* NewStar Desktop OS 4.5.2

* UOS 20

* NFS-CHINA Desktop OS 4.0

* NFS-CHINA Server OS

* Emind OS

* iKuai router

Transfer status

Green Blink + Green Link

1000Mbps

Connection Status

Green Link + Orange Link

Transfer status

Green Blink + Orange Link

Storage Temperature

-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35 ℃

Certification

FCC, CE, RoHS
