LRSU9A72N-2A

PCIe 2.0 x1 | Renesas upd 720202 | Type-A | 5Gb/s

LRSU9A72N-2A

PCIe2.0 x1 5G 2P USB3.0 Adapter

Renesas upd 720202 main control chip

5Gbps shared bandwidth performance

Support USB legacy function

PCIe2.0x1, compatible with x4, x8, x16

Backward compatible with USB2.0 and USB1.1 devices

Supports the following speed data rates: Low Speed (1.5 Mbps) / Full Speed (12 Mbps)

Supports all following USB compatible data transfer types; control/bulk/interrupt/isochronous transfer

Support USB debugging function on all SuperSpeed ports

Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification Version 1.0

Compliant with PCI Express Base Specification Version 2.0

LRSU9A72N-2A

PDF 443.14KB

Download

More Support

Overview Specifications Driver Related products

Overview

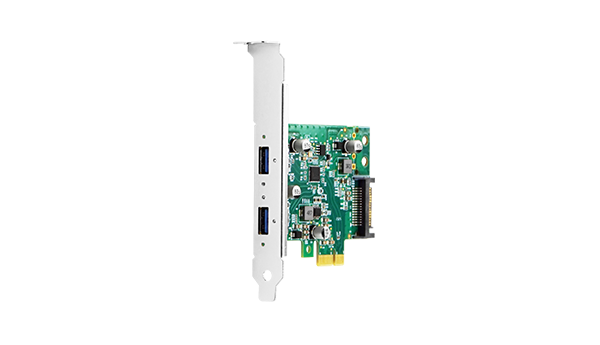

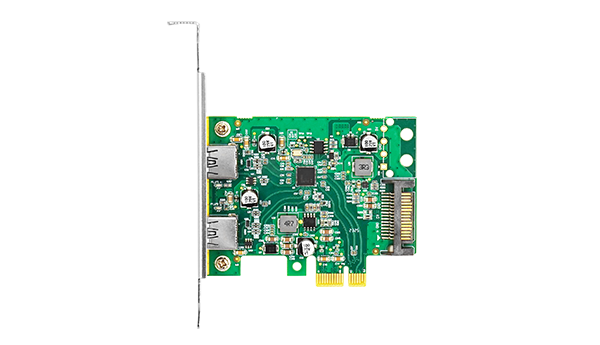

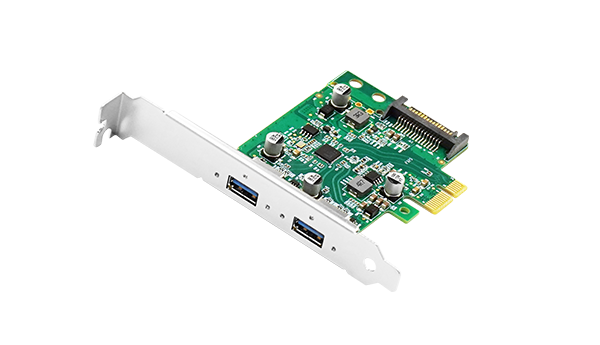

The LRSU9A72N-2A is a practical USB 3.0 PCIe interface card designed for desktop computers that require additional USB 3.0 ports. Easily installed via the PCIe slot, the card provides two USB 3.0 ports supporting data transfer rates up to 5 Gbps. This makes connecting high-speed USB devices easy and fast, whether for data transfer, file backup or device charging, it will meet your daily needs. Overall, the LRSU9A72N-2A is a convenient and practical upgrade option that makes it easy to adapt your computer to more USB 3.0 devices.

Operating System Support

Windows 7 / 8 /10 /11

Windows Server 2008 / 2012 /2016 /2019 /2022

RHEL/Centos7.6 /7.9 /8.2 /8.3

Deepin 15.11 /20 /20.6

Ubuntu 18.04.5 /20.04.1

VMware ESXi 6.5 /6.7 /7.0

SUSE 12.5

FreeBSD 12.2

ZTE New Fulcrum 3.2.2 /5.0.5

Asianux Server v7.0

Galaxy Unicorn v10 SP1

NeoKylin 7.6

Zhongke Fangde desktop operating system 4.0

Zhongke Fangde server operating system

Tongxin UOS 20

Emind OS ·OpenKylin 0.7.5

Data Rate

Ultra High Speed: 4.8G bps

High speed: 480Mbps

Full speed: 12Mbps

Low speed: 1.5Mbps

Specifications

HARDWARE
Model	LRSU9A72N-2A
Bus Type	PCI-Express 2.0 x1
I/O Controller	Renesas upd 720202
External Port	USB 3.2 Gen1 Type-A
Interface	2
Transfer Speed	5Gb/s
ESD_Contact discharge	Contact discharge	±8KV(Class B)
ESD_Air discharge	Air discharge	±15KV(Class A)
ESD test classification Class A: Normal performance within the limits specified by the manufacturer, commissioner, or purchaser. Class B: Temporary loss or reduction of function or performance, but can be recovered by itself after the disturbance stops, without operator intervention; Class C: Temporary loss or degradation of function or performance that requires operator intervention to restore; Class D: irrecoverable loss of function or performance degradation due to damage to device hardware or software, or loss of data.

ENVIRONMENTAL
Humidity	15%-90%
Operating Temperature	0℃-70℃(32℉-158℉)
Storage Temperature	-25℃-80℃(-13℉-176℉)

PHYSICAL CHARACTERISTICS
PCB size(unit:mm)	68.5851.6
Product Weight(unit:g)	*

PACKAGING INFORMATION
Package size (unit: mm)	22214728

WHAT'S IN THE BOX
Included in Package	1 - USB 3.2 Gen1 Adapter
	1 - Low bracket
	1 - Full bracket(installed)

Driver

File name	For OS	Version	Upload time	Downlaod
RENESAS-USB3-Host-Driver-30230-setup	Windows	3.0.23.0	2024-08-14
