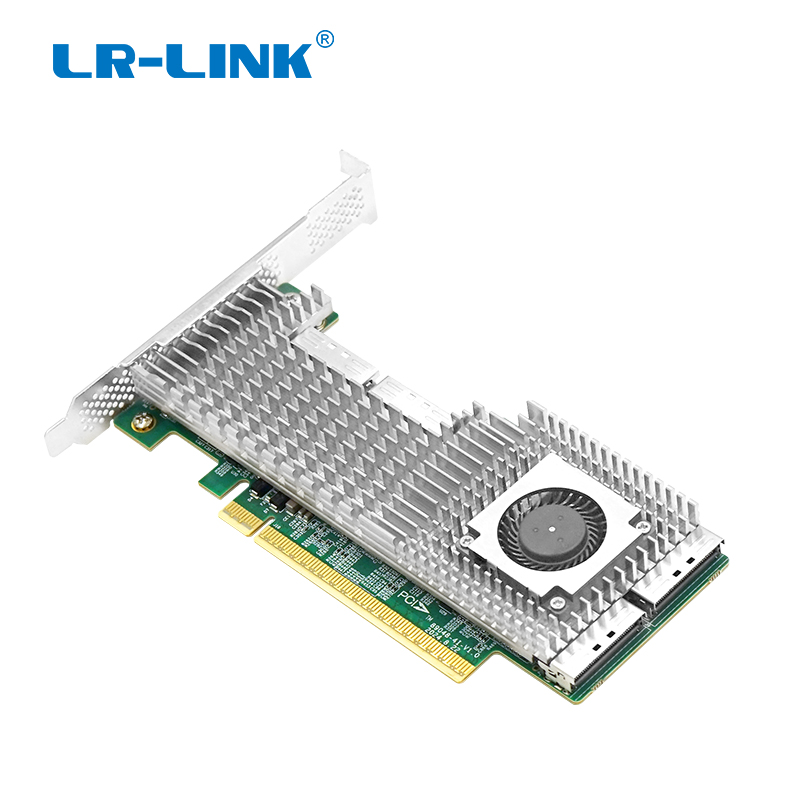

LRSV9500-4I is a PCIe5.0 x16 to 4-port built-in MCIO 8I NVMe switch adapter based on Broadcom PEX89048. It supports 2 X16, 4 X8, and 8 X4 flexible splitting modes, which allows users to flexibly configure according to the actual needs, whether it is high-bandwidth single-device access or multi-device parallel processing, can be easily dealt with. Can directly support up to 8 M.2, U.2/U.3 or E3.S SSDs.

LRSV9500-4I

PCIe5.0 x16 to 4-Port Internal MCIO 8I NVMe Switch Adapter

PCIe Gen5.0 x16;

Comes with switch function;

Support three splitting modes of 2*X16, 4*X8 and 8*X4;

Integrated NVMe Hot-Swap

LRSV9500-4I

PDF 0B

Download

More Support

Overview Specifications

LRSV9500-4I is a PCIe5.0 x16 to 4-port built-in MCIO8I NVMe switch adapter developed by Shenzhen Lianrui Electronics Co., Ltd. based on Broadcom PEX89048. It supports two X16, four X8, eight X4 three flexible splitting methods, users can be flexibly configured according to the actual needs, whether it is high-bandwidth single-device access or multi-device parallel processing, can be easily dealt with. It can directly support up to 8 M.2, U.2/U.3 or E3.S SSDs. Designed for high-end application scenarios such as SSD performance testing, GPU expansion testing, etc., the LRSV9500-4I accelerates the product development and validation process by ensuring the accuracy and real-time availability of test data through high-bandwidth, low-latency PCIe 5.0 connections.

Technical Specifications

Model	LRSV9500-4I
Controller	Broadcom PEX89048
PCIe bus	PCIe5.0(32 GT/s) x16
Bracket Height	Low Profile & Full Height
Connector Type	MCIO 8I
SSD Form Factor	U.2, U.3, E3.S (via cabling accessories)
SSD Hot-Plug	Yes
PCIe Splitting	2X16,4X8,8*X4
Power Consumption	11.94W(Min), 19.92W(Max)
Operating System Support	* Windows 10 / 11 * Windows Server 2016/2019 /2022 * RHEL/Centos7.6 /7.9 /8.2 /8.3 * Deepin 15.11 /20 /20.6 /20.9 * Ubuntu 18.04.5 /20.04.1 /22.04.3 * SUSE 15.4 * FreeBSD 12.2 / 13.2 * NewStartOS 3.2.2 /5.0.5	* Galaxy Kylin OS v10 * NeoKylin 7.6 * Fangde Desktop OS 5.0 * Fangde Server OS 4.0 * UOS 20 * Emind OS * VMware ESXi 6.7 /7.0/8.0

Working Parameters

Operating Temperature	-10°C to 60°C
Storage Temperature	-40°C to 85°C
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35°C
Certification	FCC, CE, RoHS

Physical Properties

PCB Size(Unit:mm)	155.6968.61.6
Packing Size(Unit:mm)	222* 147*28

Packing List

Baffle specifications	Full bracket(installed) & Low Profile
Expansion Card	*1
Product warranty card	*1
Packing	Carton and Blister box
