PCIe x4 Single-port 10G Copper Ethernet Network

-PCI Express 4.0 x4

-Dual-port RJ45 interfaces

-Support 100M/1G/2.5G/5G/10G

-Support SR-IOV

-Support Wol -Support 1588PTP

LRES1060PT-2RJ45

PDF 248.05KB

Download

More Support

Overview Specifications

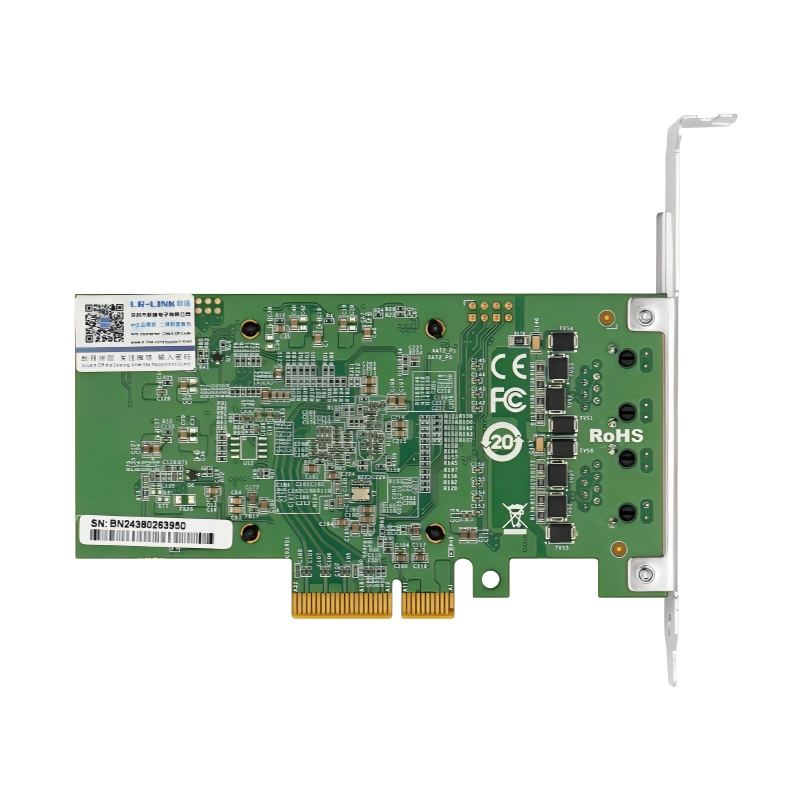

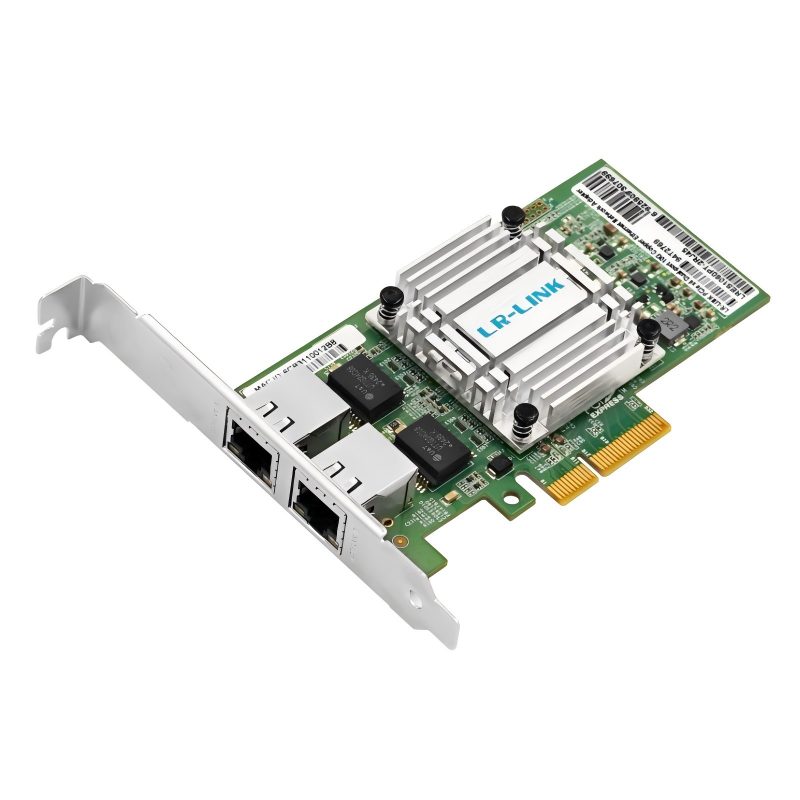

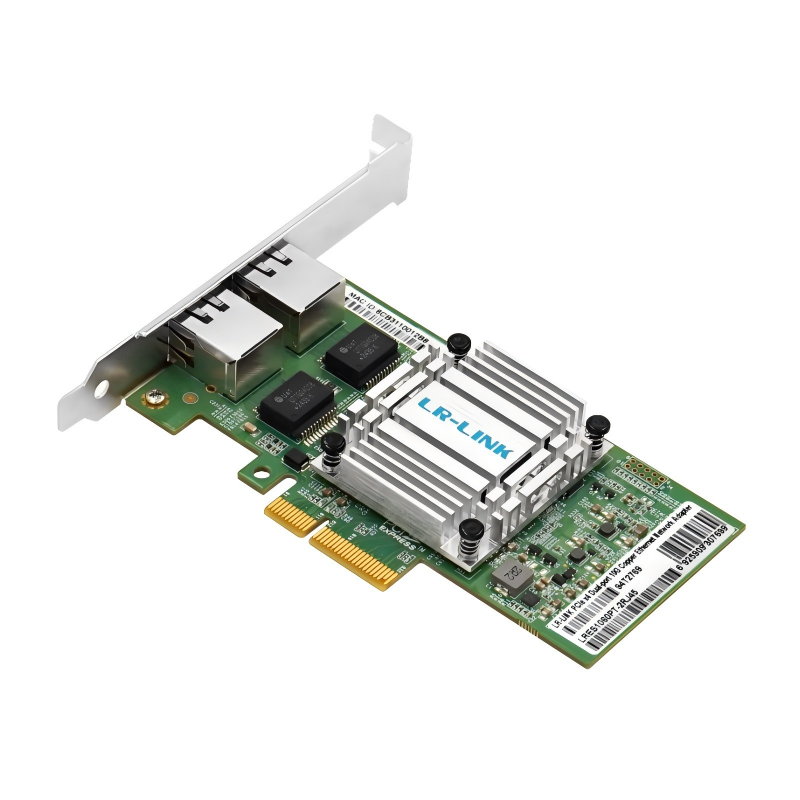

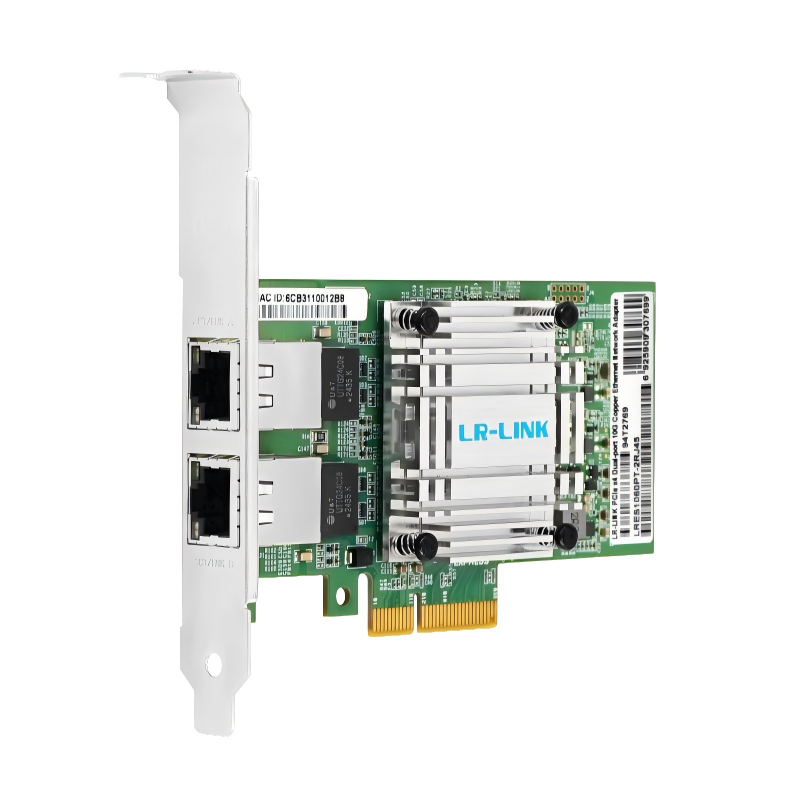

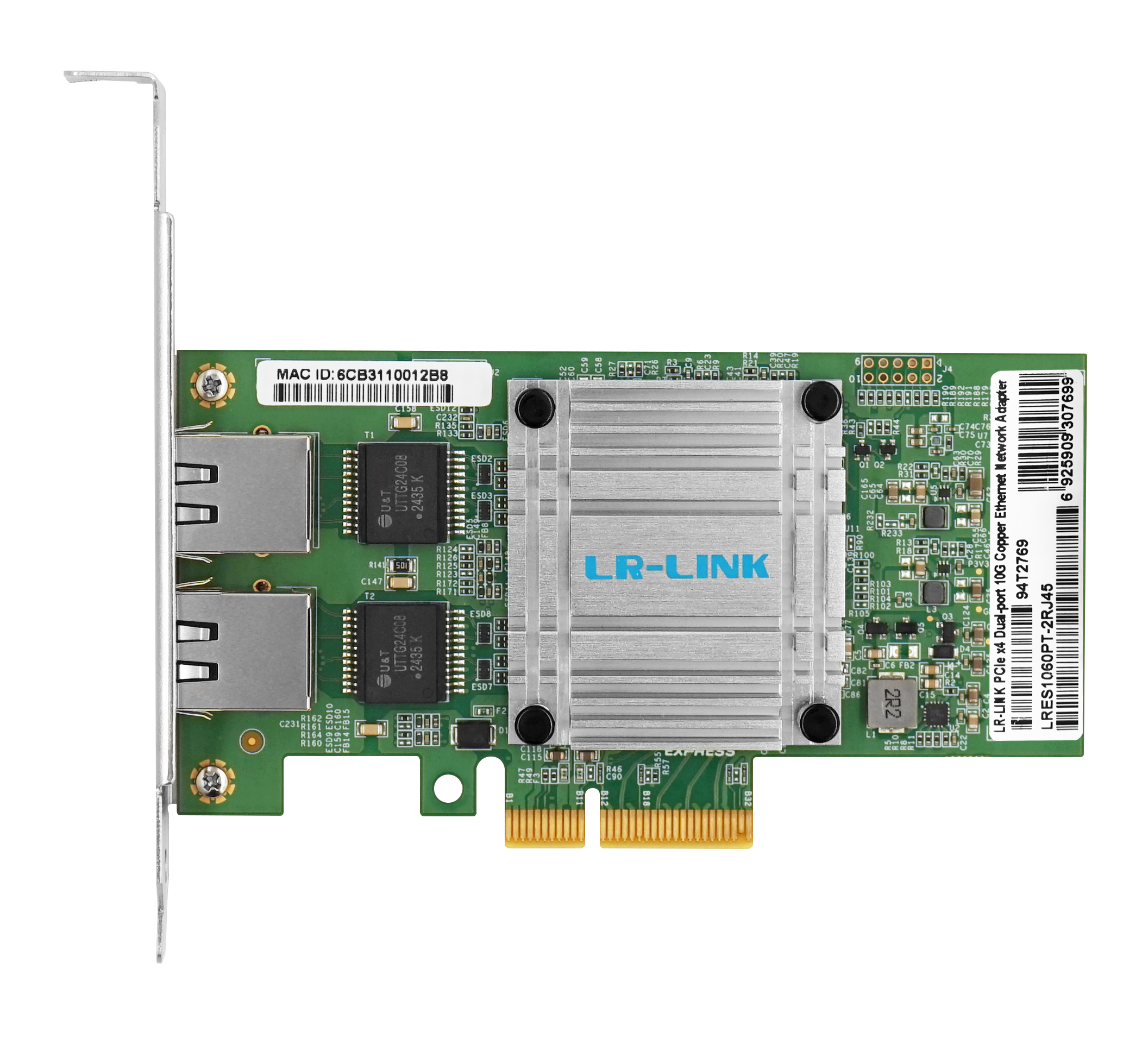

The LRES1060PT-2RJ45 is a 10G Dual-port Ethernet network adapter developed by Linkreal Co., Ltd. based on the Intel E610 chip. It utilizes a PCIe4.0x4 interface, supports 100M/1/2.5/5/10Gbps auto-sensing, and integrates PXE/UEFI, WOL, SR-IOV, and 1588PTP. It offers low power consumption and high security.

The LRES1060PT-2RJ45 demonstrates exceptional value in data centers, network equipment, embedded systems, and edge IoT applications. It meets the needs of efficient data transmission, balances deployment flexibility with operational simplicity, and provides a stable and reliable Ethernet access solution for diverse network environments, balancing performance and cost.

Product Specifications

Model	LRES1060PT-2RJ45
Controller	Intel E610
Host Connector	PCIe4.0 x4
Connector	RJ45
Port	Dual
Link Speed	100M/1G/2.5G/5G/10G
Cable medium	Copper
Power Supply	PCIe Supply
Protocol Support	IEEE 802.3an 10GBASE-T IEEE 802.3-2012 1000BASE-T/100BASE-TX IEEE 802.1Q VLAN IEEE 1588 IEEE P802.1AE/D5.1 IEEE 802.3az IEEE 802.1BR/D3.3 IEEE 802.1Qbg

Functional Support

PXE/UEFI	Yes
WoL	Yes
SR-IOV	Yes
1588 PTP	Yes
Jumbo Frames	9.2KB

Power Consumption

Max	*W
Min	*W

LED Indicators

LED Type	Color/Behavior	Note
Link	Off	No link
	Green	Link
Activity	Off	No Activity
	Green(blink)	Linkup(traffic flowing)

Supported Physical Layer Interfaces

10Gbase-T	Cat.6 up to 55m, Cat.6a or Higher up to 100m
5Gbase-T	Cat.6a or Higher up to 100m
2.5Gbase-T	Cat.5e up to 30m, Cat.6 or Higher up to 100m
1Gbase-T	Cat.5e or Higher up to 100m
100Mbase-T	Cat.5 or Higher up to 100m

Supported Systems

·Deepin ·RHEL/CentOS ·Ubuntu ·Fusion OS ·Kylin OS ·Kylin Server OS ·OpenKylin ·Windows ·Windows Server ·NewStart OS ·UOS ·OpenEuler ·Rocky

Technical Specifications

Operating Temperature	-10°C to 60°C
Storage Temperature	-40°C to 70°C
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 °C
Certification	FCC, CE, RoHS

Physical Properties

PCB Size	125*68.9
Package Size	*

Packing List

Internet Network Adapter	*1
Product Warranty Card	*1
Packaging	Carton + Anti-static bag
