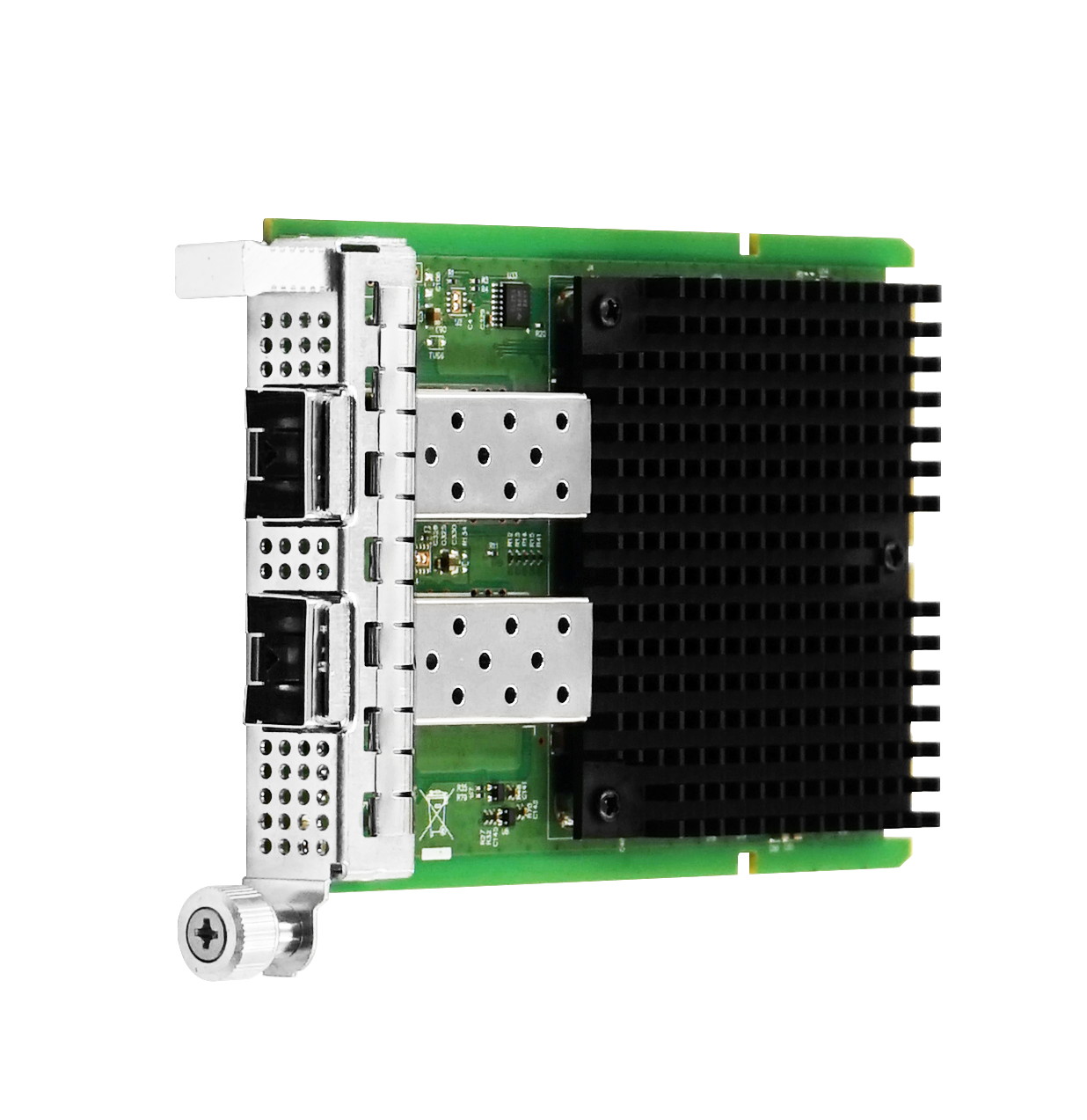

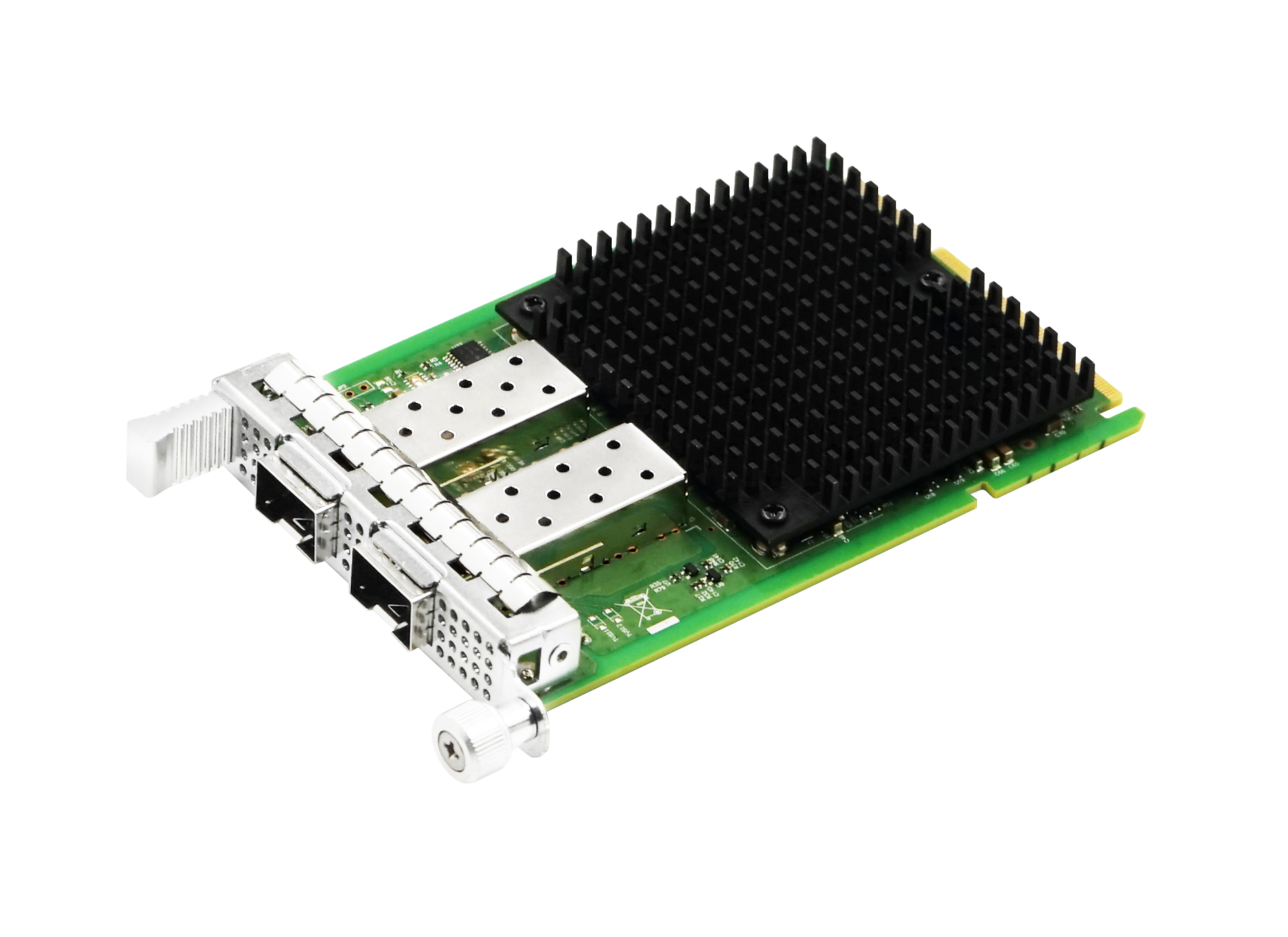

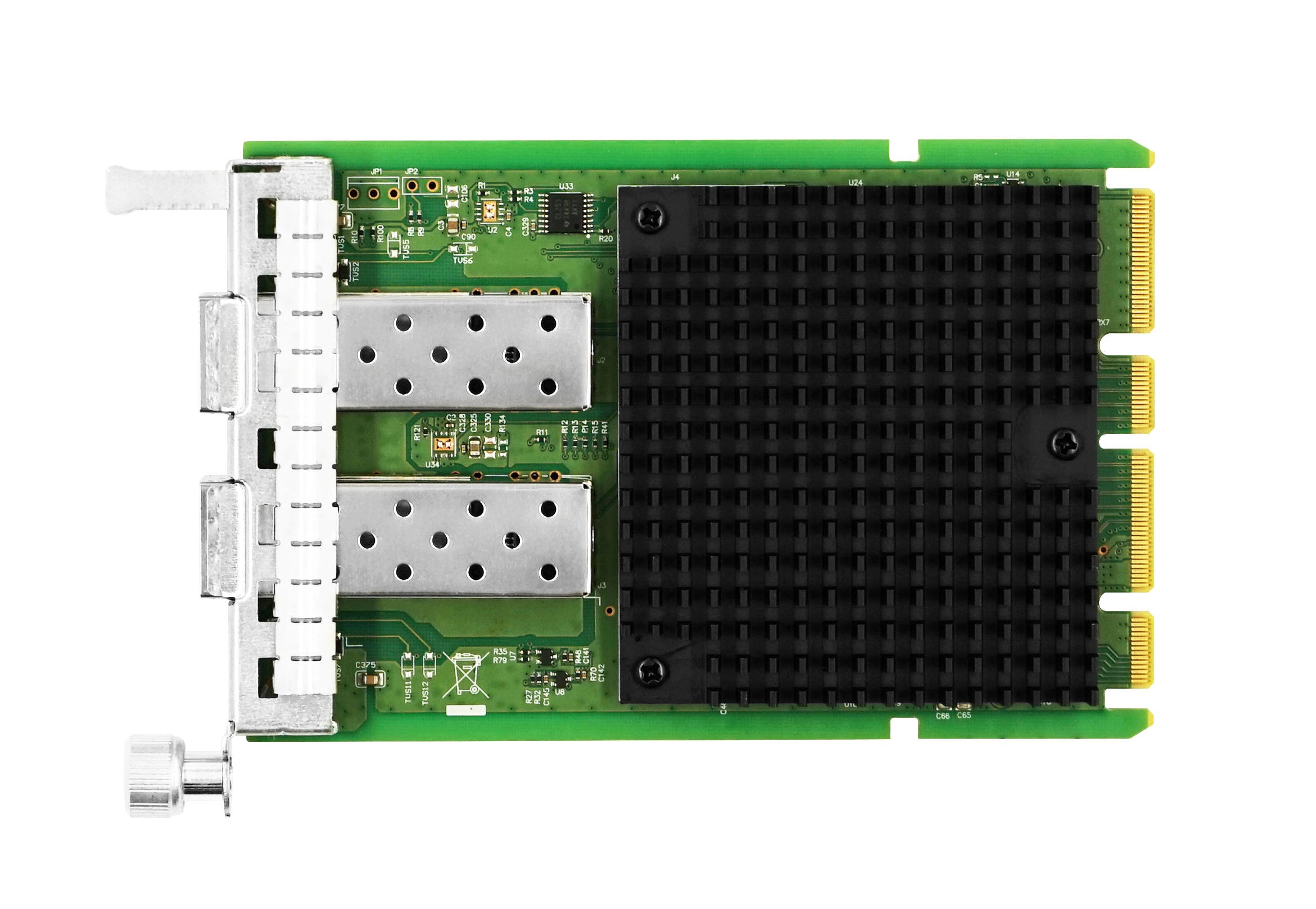

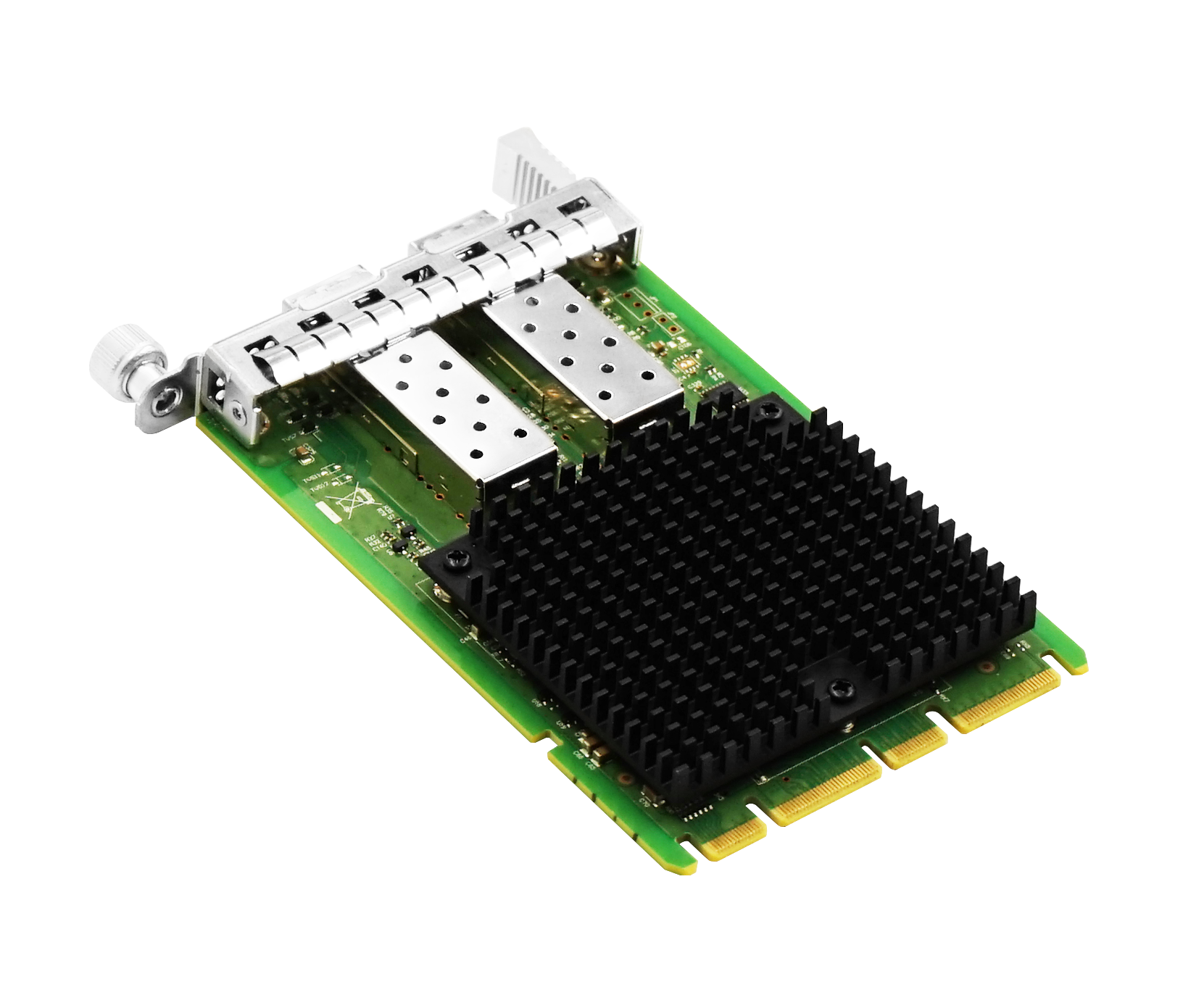

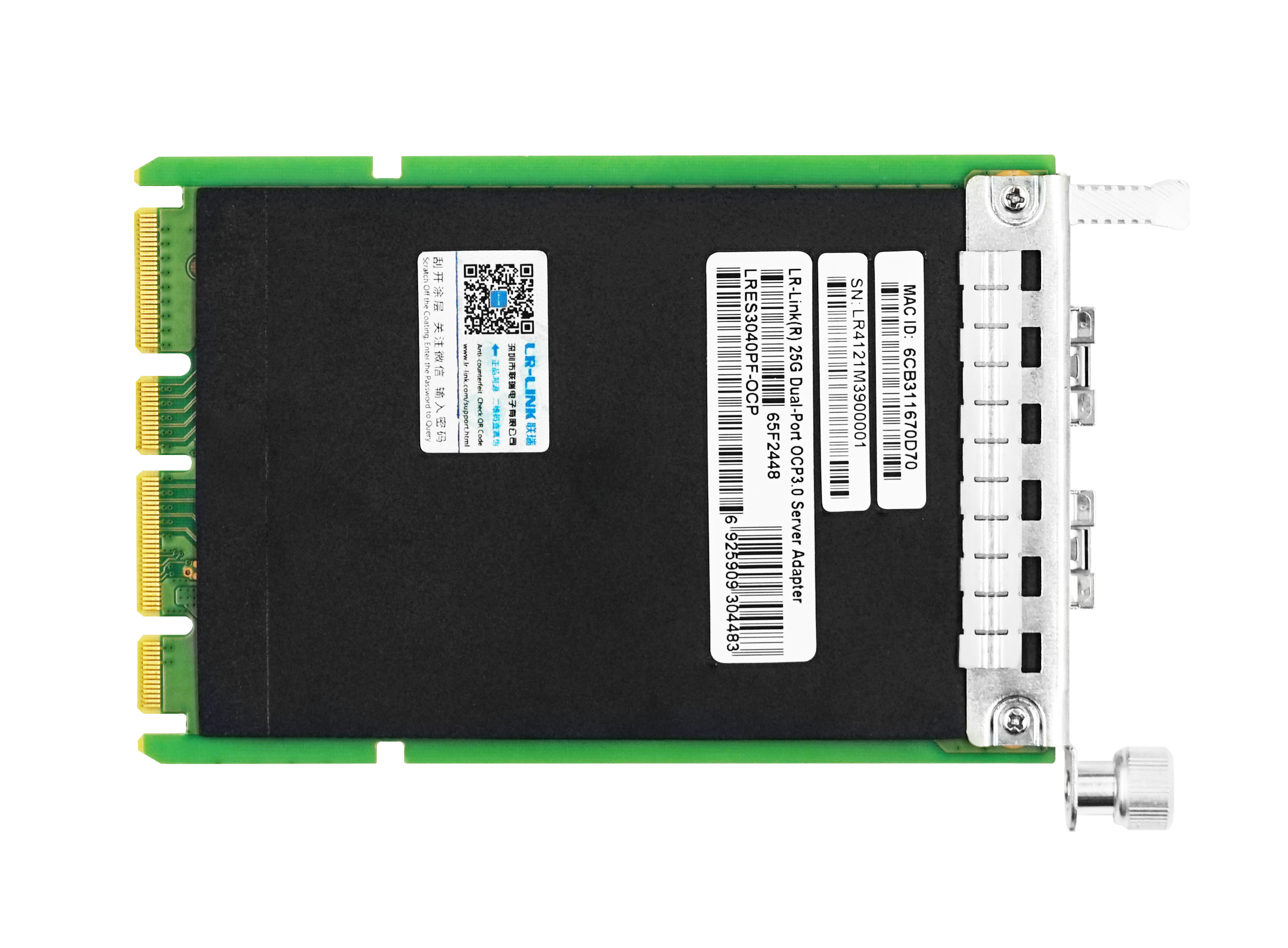

OCP 3.0 Dual-port 25G SFP28 Ethernet Network Adapter

LRES3040PF-OCP is an OCP 3.0 SFF Dual-port 25G ethernet network adapter. Virtualization applications with 1/10/25G connectivity for network infrastructure, native hardware support based on ethernet stateless offload engine, direct connection technology, etc.

The SR-IOV technology of LRES3040PF-OCP provides dedicated adapter resources for VMS in the server to meet the guarantee of isolation and protection. Meanwhile, I/O virtualization provides better server utilization in the data center and reduces the cost and cabling complexity. Allow more virtual machines to run on the same hardware to meet more user needs.

LRES3040PF-OCP uses NVGRE, VXLAN and GENEVE hardware uninstallation engines to effectively solve the problem of VM traffic transmission through the logical tunnel of packaging formats (such as NVGRE and VXLAN). The problem of network scalability and load on the host CPU is solved. These offload engines encapsulate and unencapsulate override protocol headers, enabling traditional offloads to be performed on encapsulated traffic of these and other tunnel protocols (geneva, MPLS, QinQ, etc.).

LRES3040PF-OCP provides a very economical and flexible Ethernet adapter solution for Web 2.0, cloud, data analytics, database, and storage platforms.

Specifications

Cable medium	Optical Fiber
Bracket Height	SFF
Power (max)	10.572 W
System Support	Windows 8 /8.1 /10 /11
	Windows Server 2012 R2 /2016 R2 /2019 R2 /2022 R
	RHEL/CentOS 7.3 /7.6 /7.9 /8.2 /8.3
	Deepin 15.11/ 20 /20.6
	Ubuntu 18.04.5 /16.04.3 /20.04.3
	SUSE 12.5 /15
	ZTE New Fulcrum 3.2.2 /5.0.5
	Asianux Server V 7.0
	Galaxy Unicorn V10 SP1
	NeoKylin 7.6
	Zhongke Fangde desktop operating system 4.0
	Zhongke Fangde server operating system
	Tongxin UOS 20
	Emind OS
	VMware ESXI 6.5 /6.7/ 7.0
	iKuai router
Bus Type	OCP 3.0
Data rate per port	1Gbps、10Gbps、25Gbps
Connector	2*25G SFP28
Power Supply	OCP

Technical Features

Protocol Support	IEEE 802.3by-2016 25GBASE-X Ethernet IEEE 802.3ae 10GBASE-X Ethernet IEEE 802.3z 1GBASE-X Ethernet IEEE 802.3ap IEEE 802.3ad IEEE 802.1Q IEEE 802.1Qaz IEEE 802.1Qbb IEEE 802.1Qbg IEEE 1588 PTP v2 IEEE 802.3az - Energy Efficient Ethernet
PXE	Yes
DPDK	Yes
WoL	No
iSCSI	No
Jumbo Frames	Yes
IEEE 1588	Yes
SR-IOV	Yes
Jumbo data frame MAX	9.2KB
FCoE	No
ESD_Contact discharge	±8KV (Class B)
ESD_Air discharge	±15KV (Class B)

ESD test classification

Class A: Normal performance within the limits specified by the manufacturer, commissioner, or purchaser.

Class B: Temporary loss or reduction of function or performance, but can be recovered by itself after the disturbance stops, without operator intervention;

Class C: Temporary loss or degradation of function or performance that requires operator intervention to restore;

Class D: irrecoverable loss of function or performance degradation due to damage to device hardware or software, or loss of data.

Environment Features

Operating Temperature	0℃ to 55℃ (32 ℉ to 131 ℉)
Storage Temperature	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃
Certification	FCC, CE, RoHS

Physical Features

PCB Size(mm)	115761.6
Package Size(mm)	17915030
Weight(g)	*

LED Indicators

1/10/25Gbps	LINK	Green Link
1/10/25Gbps	ACT	Green Blink
