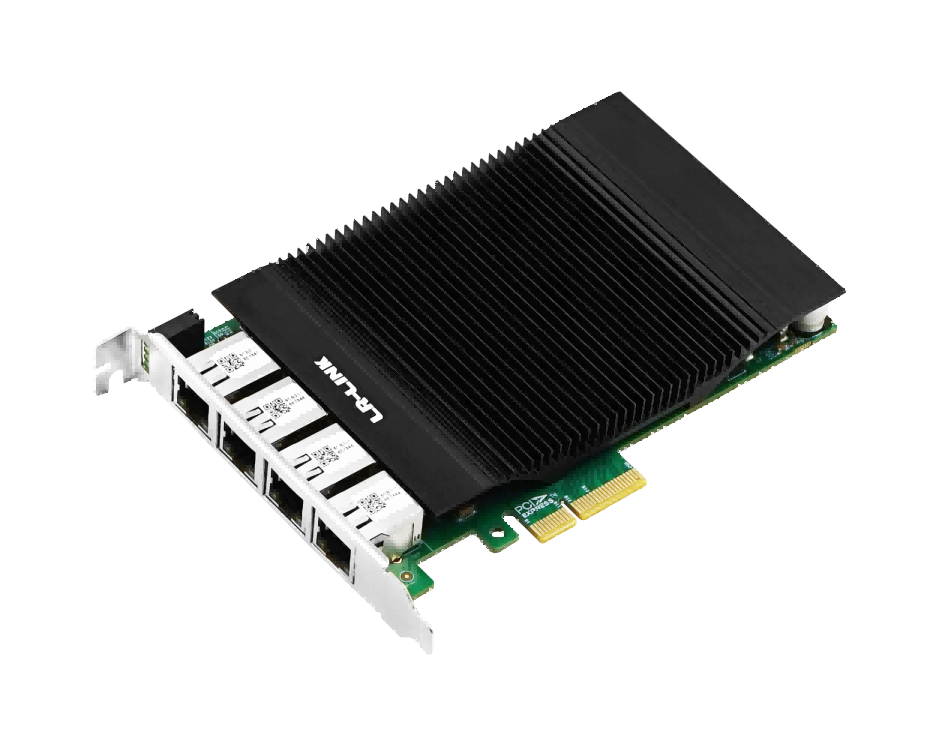

5G Vision Frame Grabber | PCI Express 3.0 x4 | Quad-port RJ45

LRES2680PT-4RJ45

PCIe X4 Quad-port 5G Vision Frame Grabber

-PCI Express 3.0 x4

-Quad-port RJ45 interface

-Jumbo Frames up to 16K

LRES2680PT-4RJ45

PDF 284.39KB

Download

More Support

Overview Specifications

LRES2680PT-4RJ45 is a high-performance quad-port 5Gbps Ethernet PCIe Gen3 x4 network adapter independently developed by Linkreal Co., Ltd., based on the Realtek RTL8126 controller.The card is equipped with four independent RJ45 copper ports, each supporting data transmission rates of up to 5Gbps.

LRES2680PT-4RJ45 not only inherits the low-latency and high-reliability advantages of the Realtek RTL8126 controller, but is also optimized for image acquisition applications.It supports multi-queue parallel processing, traffic shaping, and advanced network management features, with jumbo frame support up to 16KB.

LRES2680PT-4RJ45 is designed to meet the high-bandwidth and high-stability requirements of machine vision, intelligent surveillance, industrial automation, and traffic monitoring systems..

Product Specifications

Model	LRES2680PT-4RJ45
Controller	Realtek RTL8126
Adapter Type	PCIe NIC
Form Factor	FHHL
Host Connector	PCle3.0 x4
Connectors	RJ45
Port	4
Link Speed	100Mbps/1Gbps/2.5Gbps/5Gbps
Protocol Support	IEEE802.3, IEEE802.3u IEEE802.3bz IEEE 802.3ab IEEE 802.3x

Functional Support

PXE/UEFI	Yes
Jumbo Frames	16K

Power

13.03w (Max)

LED Indicators

LED Type	Color/Behavior	Note
Link	Off	No Link
	Green	Link at 5Gbps
	Amber	Link at lower Speed
Activity	Off	No Activity
	Green(blink)	Link up(traffic flowing)

Supported Systems

·Windows

·Windows Server

·Ubuntu

·Fusion OS

·Kylin OS

·ATL Server

·Yiming

·Deepin

·Galaxy Kylin Server

·NewStart OS

·UOS

·Fangde OS

·OpenEuler

·AIce

Technical Specifications

Operating Temperature	-10°C to 60°C
Storage Temperature	-40°C to 70°C
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 °C
Certification	FCC, CE, RoHS

Physical Properties

Adapter Size(unit:mm)	156.7(L)*104.4(W)
Package Size(unit:mm)	25017032

Packing List

Internet Network Adapter	*1
Product Warranty Card	*1
Packaging	Carton + Blister box
