PCIe 3.0 x4 | ASM 1142/1543 | USB3.1 | 10Gbps | Dual-port

LRSU9A42-AC

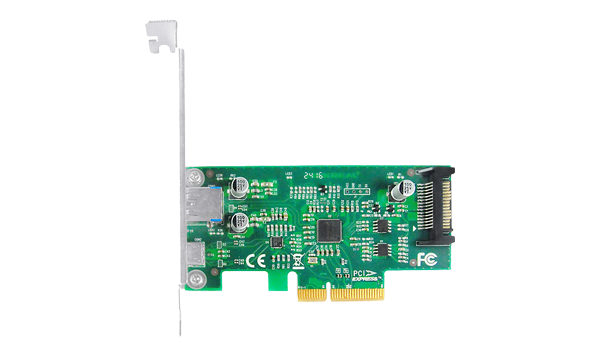

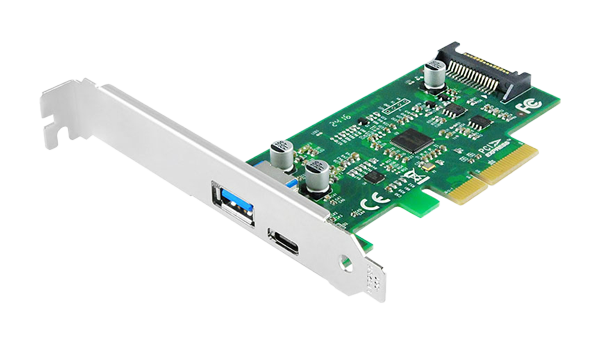

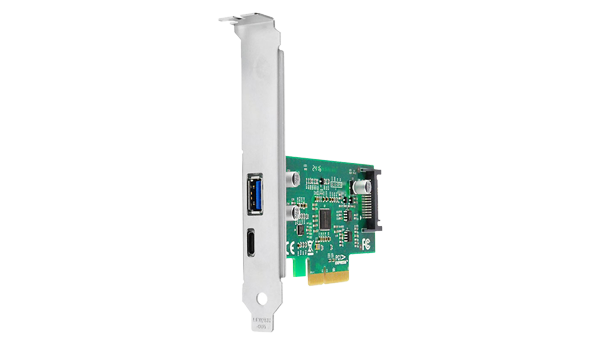

LRSU9A42-AC 10Gb/s PCIe x4 2-Port USB3.1 Adapter

ASM1142 chip, USB3.1 Host controller, bridge PCI Express to 2 port USB3.1.

Up to 10Gbps bandwidth performance.

Backward compatble with USB2.0 funccon and device.

PCIe X4 interface,compatble with slot X8, X16.

2 standard USB3.1 Type-A interfaces, support 10G/5G/480M USB data transfer rate.

Compliant with USB 3.1 Gen2.

Support multple USB devices operaang at the samame me.

Each USB port provides the maximum output: +5VDC/900mA.

Support Wake On LAN of USB keyboard or mouse devices.

Input power: 15-pin SATA CD-ROM power connecton.

Support Control, Bulk, Stream, Interrupt, Isochronous.

Support USB device hot-plugging.

LRSU9A42-AC

PDF 1.63MB

Download

More Support

Overview Specifications Driver Related products

Overview

LRSU9A42-AC is a new product of Shenzhen Linkreal Informaton Technology Co.,LTD which developed on the basis of the chip scheme ASM1142 and ASM1543, it’s a PCIe to 1 port USB3.1Type-A and 1 port USB3.1 Type-C, xHCI Host controller, supportng PCIe 3.0 and USB 3.1 specificacons, and up to 10Gbps high speed. Linkreal developed the LRSU9A42-AC, bridging PCIe interface to two ports of USB3.1(Type-A, Type-C), making an external storage device with a higher tranmission rate. It can connect two USB3.1 devices at the same tme, and also can connect a USB peripherals, and backward compatble with USB3.0, USB2.1, USB2.0, USB3.1, PCIe 3.0, PCIe 2.1, PCIe 2.0 interface specificaaon.

Specifications

HARDWARE
Model	LRSU9A42-AC
Number of Drive	2
I/O Controller	ASM1142 ASM1543
Host Bus Type	PCI Express 3.0 x4
Interface	USB 3.1 Gen 2
PERFORMANCE
Type and Rate	10Gbps
UASP Support	USB 3.1 Gen 2-10 Gbit/s
CONNECTOR(S)
Connector Type(s)	1- PCI Express x4 Male
External Ports	2- USB Type-C + Type A (24 pin) USB3.1(10Gps) Female
Internal Ports	1- SATA Power(15 pin) Plug
SOFTWARE
OS Compatibility	Windows 7,8,8.1,10 Windows Server 2008 R2,2012,2016
OS Compatibility	Linux 3.5 to 4.11 x LTS version only
SPECIAL REQUIREMENTS
System and Cable	PCIe enabled computer or server with a optional SATA Power connector
ENVIRONMENTAL
Humidity	15%-90%
Operating Temperature	5°C to 50 °C (41°F to 122°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
PHYSICAL DIMENSION
Dimension	56mm x106mm
Weight	47g
WARRANTY INFORMATION
Warranty	2 Years
WHAT’S IN THE BOX
Included in Package	1- PCI Express USB 3.1 Card
	1- Low profile bracket
	1- Full Height bracket(installed)

Driver

File name	For OS	Version	Upload time	Downlaod
LRSU9A42-2A Driver	Windows	1.16.24.0	2024-08-16
