100G | Dual-Port Network Adapter | PCIe 4.0 x16

LRES1080-2QSFP56

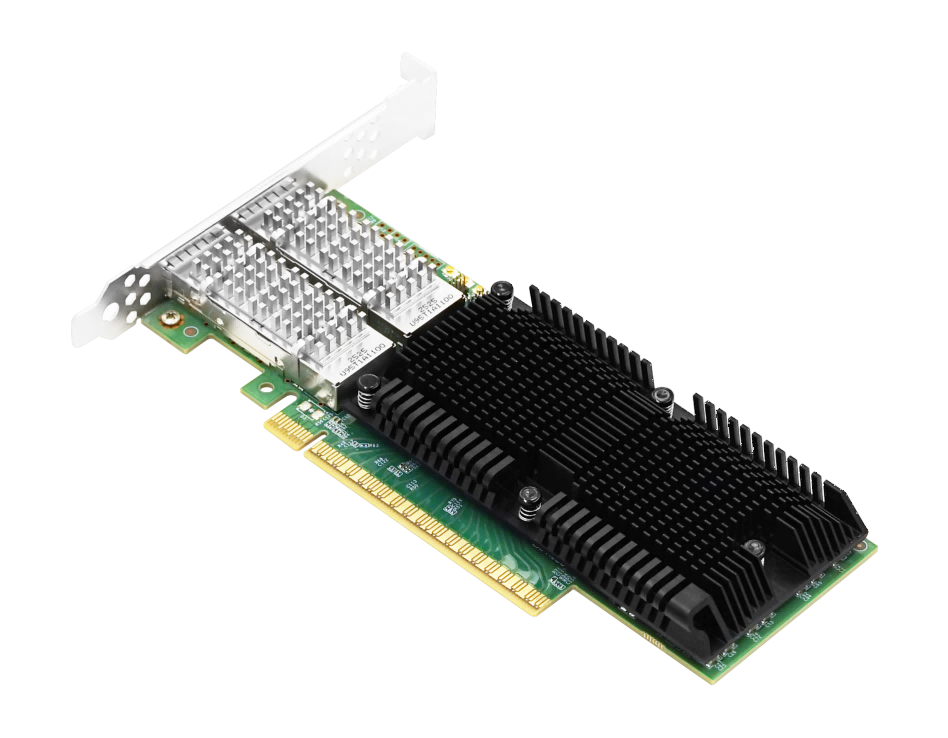

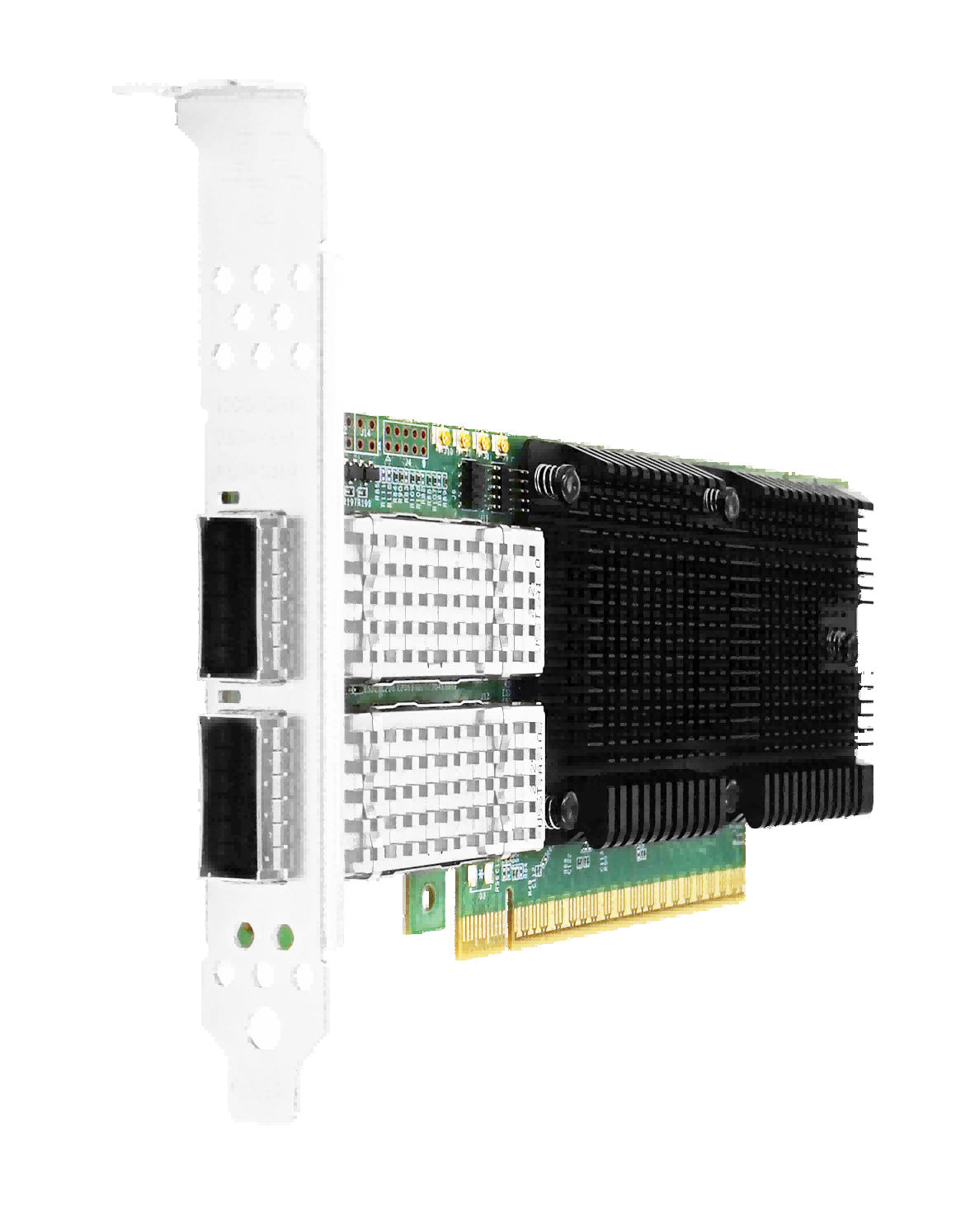

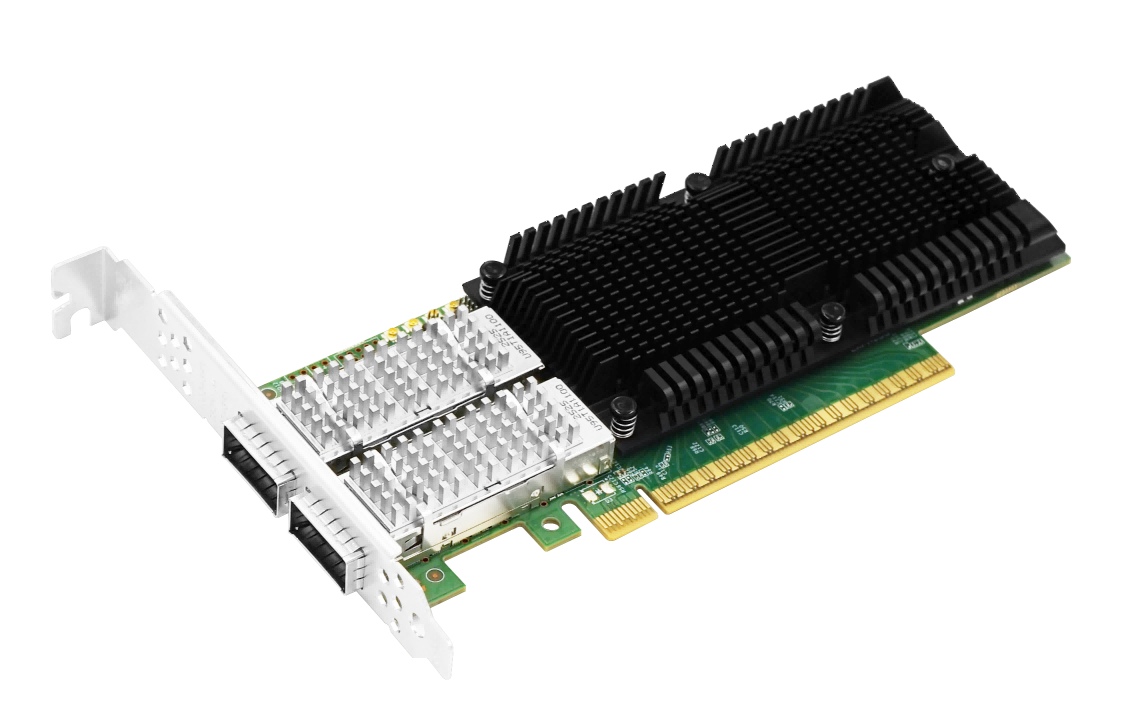

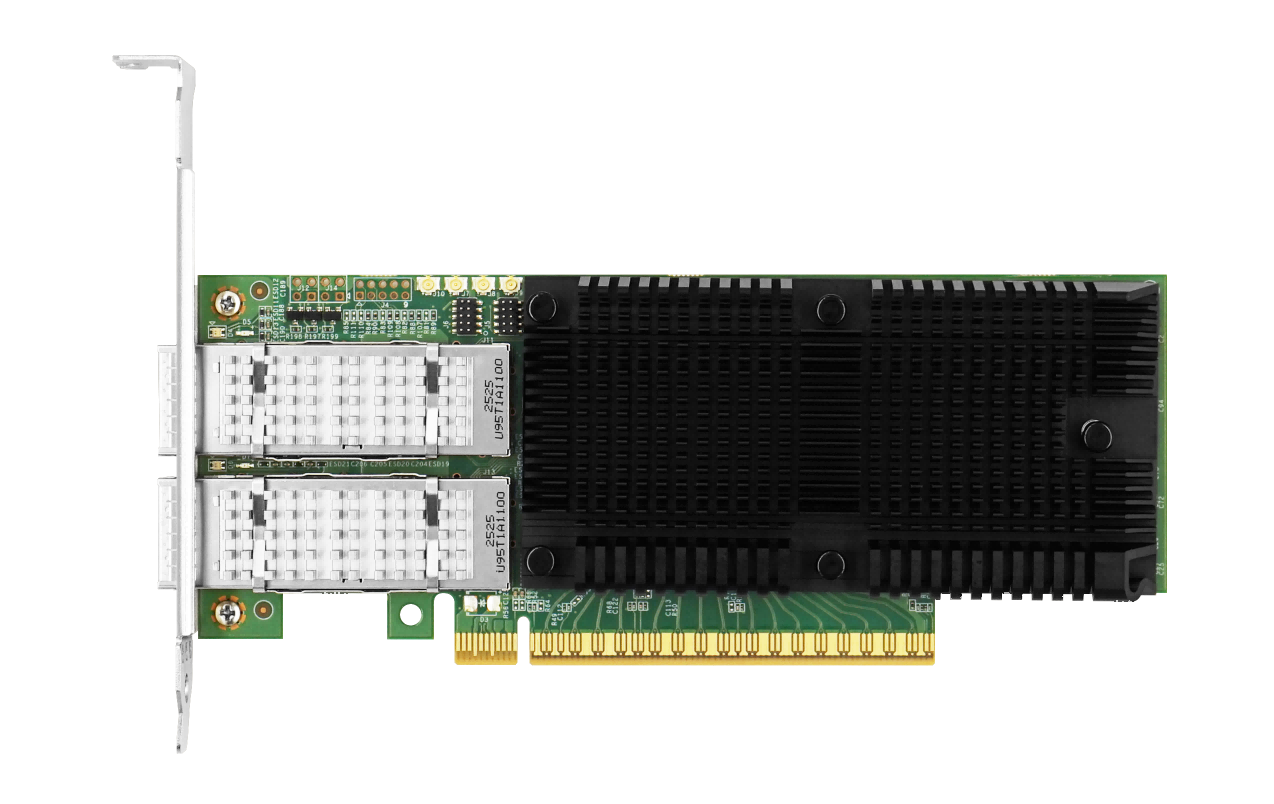

PCle x16 100G Dual-Port Network Adapter (INTEL E830 Based)

Speed up to 200GbE

Dual Port QSFP56 for 200GbE/100GbE

PCIe5.0 X8 or PCIe 4.0 X16

Supports multiple port configruations using EPCT

Supports DDP, DPDK,

LRES1080-2QSFP56

PDF 265.01KB

Download

More Support

Overview Specifications

LRES1080-2QSFP56 is a dual-port 100G network adapter, it can be configured to speeds up to 200GbE, Supports the growing bandwidth demands of modern networks, especially for cloud services, virtualized environments, and large data transfers. The low-power design enables decreased energy consumption across the system to reduce costs and environmental impact, solving increasingly important power density challenges.

LRES1080-2QSFP56 supports multiple speeds, In addition to the default configuration of 2x100G, it can also be configured through the Ethernet Port Configuration Tool(EPCT) to 1X200G(Port 1 only),4X50G,2X50G, and 8X25G(via breakout cables) .

Product Specifications
Model	LRES1080-2QSFP56
Controller	Intel E830
Adapter Type	PCIe NIC
Form Factor	HHHL
Host Connector	PCIe 4.0 x16 or PCIe 5.0 x8
Connectors	2QSFP56
Port	Dual
Link Speed	25/50/100/200Gbps
Protocol Support	‌IEEE 1588‌ ‌IEEE 802.1AS‌ ‌IEEE 802.3‌ ‌IEEE 802.1Q‌ ‌IEEE 802.1BR‌ ‌IEEE 802.1Qbv‌ ‌IEEE 802.1Qbu‌ ‌IEEE 802.1Qbb
Functional Support
PXE/UEFI	Yes
WoL	No
SR-IOV	Yes
1588 PTP	Yes
Jumbo Frames	9.7KB

Power
DAC	12.8W（Max）
Optical Transceiver	16.2W (Max)
LED Indicators
LED Type	Color/Behavior	Note
Link	Off	No link
	Amber	Link at lower speed
	Green	Link at 100Gbps
Activity	Off	No Activity
	Green(blink)	Linkup(traffic flowing)
Supported Physical Layer Interfaces
200GBASE-CR2、100GBASE-CR4 / 100GBASE-CR2、50GBASE-CR2 / 40GBASE-CR4、200GBASE-SR2、100GBASE-SR4、100GBASE-SR2、40GBASE-SR4、200GBASE-DR2、100GBASE-LR4 / 100GBASE-FR4、100GBASE-DR / 100GBASE-FR
Supported Systems
OS	·Windows ·Deepin ·VMware ESXi ·Founder Tech OS ·Kylin OS ·Open Kylin ·RHEL/Centos ·Rocky	·Ubuntu ·SUSE ·NewStart OS ·OpenEuler ·FusionOS ·ATL Server ·Alce
Technical Specifications
Operating Temperature	-10°C to 60°C
Storage Temperature	-40°C to 70°C
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 °C
Certification	FCC, CE, RoHS

Physical Properties
Product Size	170*68.74mm
Package Size	25017032mm
Packing List
Internet Network Adapter	*1
Product Warranty Card	*1
Packaging	Carton + Blister Box
