With the popularization of 4K/8K videos and NAS storage becoming the home data center, the traditional Gigabit network has become a bottleneck. Have you encountered these troubles: long waiting times when transferring large files via NAS, stuttering material loading during 4K video editing, and frequent buffering when playing Blu-ray discs on a home theater? This article will detail how to achieve a comprehensive upgrade of your home network at the lowest cost with the LRES1670PT-RJ45 10G network card.

I. Why Does Your Home Network Need  Upgrade to 10G?

1.1 Pain Points of Gigabit Network

With the explosive growth of digital content, home networks are facing unprecedented challenges:

· NAS Transfer Bottleneck: The theoretical speed of a Gigabit network is only 125MB/s, with an actual transfer speed of about 100MB/s. Transferring a 100GB 4K video material takes nearly 20 minutes.

· 4K/8K Video Editing Stutter: When video editors edit materials directly on NAS, simultaneous reading of multi-track 4K materials causes timeline stuttering.

· Limited Home Theater Experience: When playing Blu-ray disc files (50-100GB) through a Gigabit network, buffering occurs in high-bitrate scenes.

· Concurrent Congestion of Multiple Devices: In the era of smart homes, dozens of devices are online at the same time, and the Gigabit bandwidth is quickly divided up.

1.2 Transformations Brought by 10G Network

After upgrading to a 10 Gigabit Ethernet (10GbE) network, the theoretical transfer speed can reach 1250MB/s, and the actual transfer speed exceeds 1000MB/s, bringing a qualitative leap:

· The transfer time of a 100GB file is shortened from 20 minutes to less than 2 minutes.

· Supports simultaneous editing of multiple 4K video streams with zero latency in timeline dragging.

· Blu-ray discs play instantly, and 8K videos play smoothly without pressure.

· Reserves sufficient bandwidth for future 8K content and VR/AR applications.

II. LRES1670PT-RJ45 10G Network Card: The Best Choice for Home Upgrades

2.1 Core Product Advantages

The LRES1670PT-RJ45 is a PCIe X1 single electrical port 10G Ethernet network adapter launched by LR-LINK, adopting the Realtek RTL8127 chip and designed exclusively for high-performance home networks:

· Ultra-high Speed: Supports six-speed adaptive rates of 10M/100M/1G/2.5G/5G/10Gbps, compatible with existing network devices.

· PCIe 4.0 x1 Interface: Makes full use of the motherboard's PCIe channels to provide sufficient bandwidth for 10G transmission.

· Standard RJ45 Interface: No need to replace network cables; CAT6A and above network cables can support 10G transmission.

· Low Power Consumption Design: The maximum power consumption is only 2.14W, energy-saving and environmentally friendly.

· Wide Compatibility: Supports mainstream operating systems such as Windows, Ubuntu, Deepin, UOS and Kylin.

2.2 Detailed Technical Specifications

Network Standards: IEEE 802.3an (10GBASE-T), IEEE 802.3bz (2.5G/5GBASE-T), IEEE 802.3ab (1000BASE-T), IEEE 802.3u (Fast Ethernet)

Transmission Distance: CAT6A/CAT7 network cables support 100-meter 10G transmission, CAT6 network cables support 55 meters, and CAT5A supports 50 meters.

Advanced Functions: Supports PXE network boot, WOL remote wake-up, Jumbo Frames (max 9.1KB), VLAN tagging.

Operating Temperature: Normal operation from 0°C to 60°C, adaptable to various home environments.

III. Application Scenarios: How 10G Network Changes Your Life

3.1 High-speed NAS Storage Access

For home users with NAS, a 10G network card is the key to releasing NAS performance. Taking mainstream NAS such as Synology and QNAP as examples, combined with the LRES1670PT-RJ45 network card:

· The file transfer speed is increased from 100MB/s to over 1000MB/s, a 10-fold speed boost.

· Time Machine backup and photo synchronization are completed almost instantly.

· Docker containers and virtual machines run more smoothly.

3.2 4K/8K Video Editing

Video creators can edit 4K/8K materials directly on NAS without copying files to the local device:

· Zero waiting for timeline dragging in Premiere Pro and DaVinci Resolve.

· Smooth preview of multi-camera editing and multi-track timelines.

· More efficient material sharing during team collaboration.

3.3 Home Theater and Media Center

Cooperate with media servers such as Plex and Jellyfin to realize whole-house 4K/8K streaming media playback:

· Blu-ray discs (80-100GB) play instantly without buffering.

· No pressure to play different 4K sources in multiple rooms at the same time.

· High-bitrate formats such as HDR and Dolby Vision play smoothly.

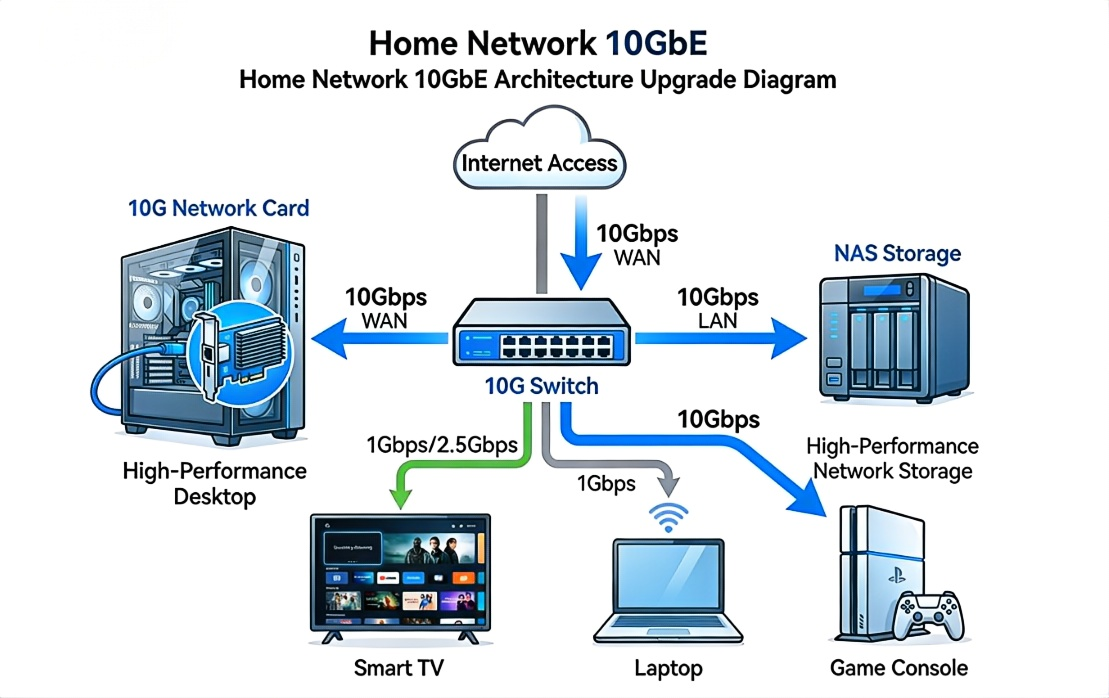

IV. How to Deploy Your 10G Home Network

4.1 Hardware Preparation List

· 10G Network Card: LRES1670PT-RJ45 (PC side)

· 10G Switch: 8-port or 16-port 10G electrical port switch

· Network Cable: CAT6A or CAT7 network cable (finished cables are recommended to ensure quality)

· NAS Network Card: Ensure that the NAS supports 10G expansion or has a built-in 10G network port.

4.2 Installation and Configuration

· The LRES1670PT-RJ45 adopts a standard PCIe interface and is easy to install:

· Turn off the computer and insert it into the PCIe X1 slot (compatible with X4/X8/X16).

· Connect the CAT6A network cable to the 10G switch.

· The system recognizes it automatically after booting, or download the driver from the LR-LINK official website.

· Enable Jumbo Frames in the network card properties to improve transmission efficiency.

Conclusion: 10G Network is Worth Upgrading

The LRES1670PT-RJ45 10G network card provides a cost-effective network upgrade solution for home users. Whether it is high-speed NAS access, 4K video editing, or home theater experience, the 10G network can bring a qualitative leap. With the popularization of 8K content and VR/AR applications, laying out a 10G network in advance will make your home digital life one step ahead.
